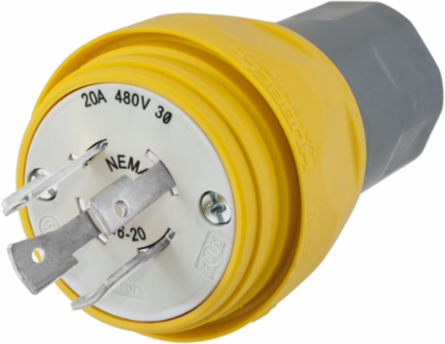

Hubbell Wiring Device-Kellems HBL26W76 Watertight Twist-Lock Plug, 20A, 480V AC, 3-Pole, 4-Wire, Yellow
Hubbell Wiring Device-Kellems HBL26W76 Watertight Twist-Lock Plug, 20A, 480V AC, 3-Pole, 4-Wire, Yellow
- MPN: HBL26W76
- UPC: 783585131641
- PPN: HBL-HBL26W76
- UNSPSC: 39121402
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.48/ EA
Description
Watertight Devices, Twist-Lock® Plug, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20P, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
- Amperage
- 20 A
- Number of Poles
- 3-Pole
- NEMA Rating
- L16-20P
- Max Operating Temperature
- +60°C
- Temperature Rise
- 30°C max per UL498
- Dimensions
- 2.51 in x 2.51 in x 3.96 in
- Height
- 3.96 in
- Cord Diameter
- 0.325-0.875 in
- Compliance
- UL Listed 4, 4X, 12, 6, 6P, RoHS Compliant
- Country of Origin
- CN
Voltage3 Phase 480 V AC
Number of Wires4-Wire
Wire Size RangeMin Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S; Max Cord: 10/3 S, 10/4 S, 10/5 S
Min Operating Temperature-40°C
Dielectric Voltage2500 V AC
Length2.51 in
Width2.51 in
MaterialThermoplastic elastomer
ColorYellow
