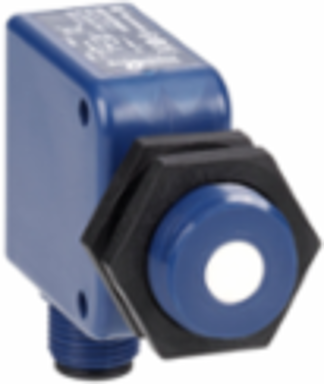

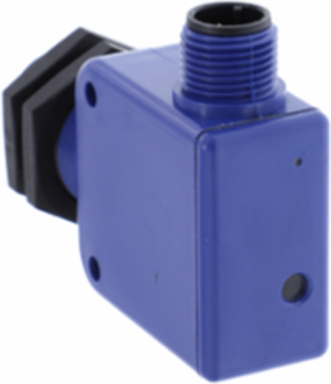

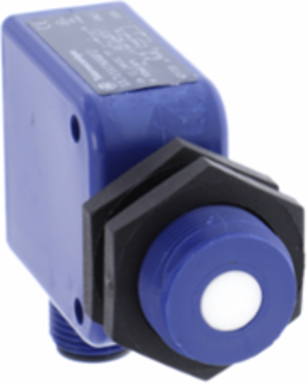

Telemecanique Sensors XX9V1A1F1M12 Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.5 m, 0...10 V, M12 connector
- MPN: XX9V1A1F1M12
- PPN: TES-XX9V1A1F1M12
- UNSPSC: 39122230
CAD
$305.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This flat ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC and an analog ouput of 0V to 10V. This general purpose parallelepipedic ultrasonic sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.051-0.508 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 0.5-0.5 m adjustable with remote teach push-button
Type Of Output Signalanalogue
Sensor NameXX9
Materialplastic
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle6 °
Sensor Typeultrasonic sensor
Sensor Designflat form 18 x 33 x 60 + cylindrical M18
Analogue Output Function0...10 V
Complementary
- Maximum Switching Capacity
- >= 1 kOhm overload and short-circuit protection
- Height
- 65 mm
- Maximum Delay Response
- 15 ms
- Setting-Up
- slope selection using teach button
- [Sa] Assured Operating Distance
- 0.051-0.508 m teach mode)
- Marking
- CE
- Net Weight
- 0.09 kg
- Deviation Angle From 90° Of Object To Be Detected
- -7-7 °
- Maximum Delay Recovery
- 10 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 44 mm
- Depth
- 18 mm
Repeat Accuracy1.27 %
Minimum Size Of Detected Objectcylinder diameter 2.5 mm 0.15 m || flat bar 1 mm wide 0.15 m
Status Ledsetting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
Transmission Frequency300 kHz
Threaded Length20 mm
Blind Zone0-51 mm
Current Consumption40 mA
Thread TypeM18 x 1
Maximum Delay First Up100 ms
Enclosure Materialvalox
Front Materialepoxy
Environment
- Product Certifications
- UL || cCSAus
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-20-65 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
