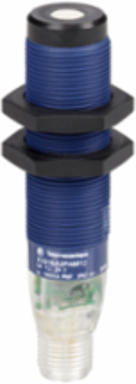

Telemecanique Sensors XX218A3PFM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, 2 filling levels, Sn 0.5 m, NO, M12
- MPN: XX218A3PFM12
- UPC: 785901636984
- PPN: TES-XX218A3PFM12
- UNSPSC: 39122230
CAD
$315.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This product is designed for monitoring 2 filling levels. This product features a cylindrical plastic case, diameter 18mm and an M12, 4-pin connector. DC supply, NO function, PNP solid-state output, diffuse detection system. Its sensing distance is 0.50m, remotely adjustable or by using external teach button.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.051-0.508 m
- Wiring Technique
- 3-wire
- Series Name
- Application
- Detection System
- diffuse
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M18
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXX2
Materialplastic
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle6 °
Product Specific Applicationfor 2 filling levels monitoring
Electrical Connectionmale connector M12 4 pins
[Sn] Nominal Sensing Distance0.5-0.5 m adjustable with remote teach push-button
Complementary
- Repeat Accuracy
- 1.27 %
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Maximum Delay Response
- 15 ms
- Status Led
- setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
- [Sa] Assured Operating Distance
- 0.051-0.508 m teach mode)
- Marking
- CE
- Net Weight
- 0.033 kg
- Maximum Differential Travel
- 2.5 mm
- Thread Type
- M18 x 1
- Maximum Delay First Up
- 100 ms
- Enclosure Material
- valox
- Front Material
- epoxy
Height18 mm
Minimum Size Of Detected Objectcylinder diameter 2.5 mm 0.15 m
Maximum Voltage Drop1 V
Transmission Frequency300 kHz
Threaded Length43 mm
Blind Zone0-51 mm
Current Consumption40 mA
Deviation Angle From 90° Of Object To Be Detected-7-7 °
Maximum Delay Recovery1000 ms
Supply Voltage Limits10-28 V DC
Width18 mm
Depth79 mm
Environment
- Product Certifications
- UL || cCSAus
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-20-65 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
