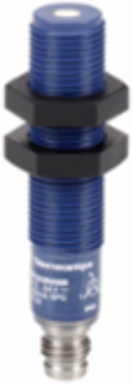

Telemecanique Sensors XXR12A8KAM8 Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, receiver, Sn 0.2 m, 2 NO, M8 connector
- MPN: XXR12A8KAM8
- PPN: TES-XXR12A8KAM8
CAD
$221.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, receiver, Sn 0.2 m, 2 NO, M8 connector
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 2 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0-0.2 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Sensor Type
- ultrasonic sensor receiver
- Sensor Design
- cylindrical M12
Discrete Output TypePNP and NPN
Type Of Output Signaldiscrete
Sensor NameXXR
Materialplastic
Ip Degree Of ProtectionIP67 IEC 60529
Detection Systemthru beam need a transmitter XXT12A8M12)
Electrical Connectionmale connector M8 4 pins
[Sn] Nominal Sensing Distance0.2-0.2 m fixed
Complementary
- Height
- 12 mm
- Switching Frequency
- <= 125 Hz
- Maximum Voltage Drop
- 1 V
- Threaded Length
- 38 mm
- Net Weight
- 0.011 kg
- Thread Type
- M12 x 1
- Maximum Delay First Up
- 100 ms
- Enclosure Material
- ULTEM
- Front Material
- epoxy
Maximum Switching Current100 mA overload and short-circuit protection
Maximum Delay Response20 ms
[Sa] Assured Operating Distance0-0.2 m
MarkingCE
Current Consumption50 mA
Maximum Delay Recovery4 ms
Supply Voltage Limits10-28 V DC
Width12 mm
Depth50 mm
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-20-65 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111225EN
