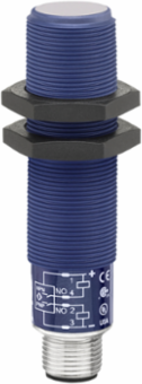

Telemecanique Sensors XXR18A4KAM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, receiver, Sn 1 m -2 NO, M12 connector
- MPN: XXR18A4KAM12
- PPN: TES-XXR18A4KAM12
- UNSPSC: 39122230
CAD
$291.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, receiver, Sn 1 m -2 NO, M12 connector
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 2 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0-1 m |
| Wiring Technique | 4-wire |
| Series Name | general purpose |
| Sensor Type | ultrasonic sensor receiver |
| Sensor Design | cylindrical M18 |
| Discrete Output Type | PNP and NPN |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XXR |
| Material | plastic |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Detection System | thru beam need a transmitter XXT18A4M12) |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 1-1 m fixed |
Complementary
| Height | 18 mm |
|---|---|
| Switching Frequency | <= 40 Hz |
| Maximum Voltage Drop | 1 V |
| Threaded Length | 51 mm |
| Net Weight | 0.033 kg |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 100 ms |
| Enclosure Material | ULTEM |
| Front Material | silicone |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
|---|---|
| Maximum Delay Response | 10 ms |
| [Sa] Assured Operating Distance | 0-1 m |
| Marking | CE |
| Current Consumption | 40 mA |
| Maximum Delay Recovery | 10 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 18 mm |
| Depth | 65 mm |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111225EN |
