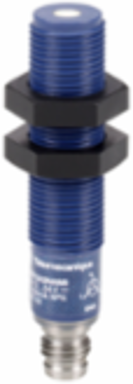

Telemecanique Sensors XXT12A8M8 Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, transmitter Sn 0.2 m, M8 connector
- MPN: XXT12A8M8
- PPN: TES-XXT12A8M8
CAD
$156.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, transmitter Sn 0.2 m, M8 connector
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Sensor Name | XXT |
| Material | plastic |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Beam Angle | 10 ° |
| Sensor Type | ultrasonic sensor transmitter |
| Sensor Design | cylindrical M12 |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
|---|---|
| [Sd] Sensing Range | 0-0.2 m |
| Wiring Technique | 2-wire |
| Series Name | general purpose |
| Detection System | thru beam need a receiver) |
| Electrical Connection | male connector M8 4 pins |
| [Sn] Nominal Sensing Distance | 0.2-0.2 m |
Complementary
| Repeat Accuracy | 0.79 % |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 12 mm 0.2 m |
| [Sa] Assured Operating Distance | 0-0.2 m |
| Marking | CE |
| Current Consumption | 50 mA |
| Supply Voltage Limits | 10-28 V DC |
| Width | 12 mm |
| Depth | 50 mm |
| Height | 12 mm |
|---|---|
| Transmission Frequency | 500 kHz |
| Threaded Length | 38 mm |
| Net Weight | 0.011 kg |
| Thread Type | M12 x 1 |
| Enclosure Material | ULTEM |
| Front Material | epoxy |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -20-65 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111225EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
