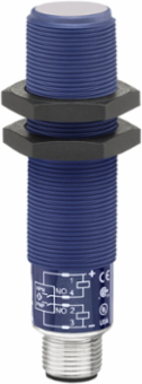

Telemecanique Sensors XXT18A4M12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 1 m, transmitter M12 connector
- MPN: XXT18A4M12
- PPN: TES-XXT18A4M12
- UNSPSC: 39122230
CAD
$241.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 1 m, transmitter M12 connector
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Sensor Name
- XXT
- Material
- plastic
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- Beam Angle
- 6 °
- Sensor Type
- ultrasonic sensor transmitter
- Sensor Design
- cylindrical M18
Range Of ProductTelemecanique Ultrasonic sensors XX
[Sd] Sensing Range0-1 m
Wiring Technique2-wire
Series Namegeneral purpose
Detection Systemthru beam need a receiver)
Electrical Connectionmale connector M12 4 pins
[Sn] Nominal Sensing Distance1-1 m
Complementary
- Repeat Accuracy
- 1.27 %
- Minimum Size Of Detected Object
- cylinder diameter 114 mm 1 m
- [Sa] Assured Operating Distance
- 0-1 m
- Marking
- CE
- Current Consumption
- 40 mA
- Supply Voltage Limits
- 10-28 V DC
- Width
- 18 mm
- Depth
- 65 mm
Height18 mm
Transmission Frequency300 kHz
Threaded Length51 mm
Net Weight0.033 kg
Thread TypeM18 x 1
Enclosure MaterialULTEM
Front Materialsilicone
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-60 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
