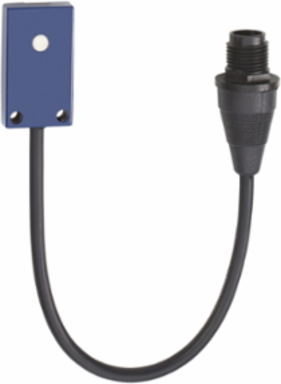

Telemecanique Sensors XXTF1A8M12L Ultrasonic sensors XX, ultrasonic sensor parallelepipedic 7x19x33, transmitter Sn 0.2 m, M12 connector
- MPN: XXTF1A8M12L
- PPN: TES-XXTF1A8M12L
CAD
$210.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor parallelepipedic 7x19x33, transmitter Sn 0.2 m, M12 connector
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Sensor Name
- XXT
- Material
- plastic
- Ip Degree Of Protection
- IP67 IEC 60529
- Beam Angle
- 10 °
- Sensor Type
- ultrasonic sensor transmitter
- Sensor Design
- flat form 33 x 19 x 7.6
Range Of ProductTelemecanique Ultrasonic sensors XX
[Sd] Sensing Range0-0.2 m
Wiring Technique2-wire
Series Namegeneral purpose
Detection Systemthru beam need a receiver)
Electrical Connectionmale connector M12 4 pins
[Sn] Nominal Sensing Distance0.2-0.2 m
Complementary
- Repeat Accuracy
- 0.79 %
- Minimum Size Of Detected Object
- cylinder diameter 12 mm 0.2 m
- [Sa] Assured Operating Distance
- 0-0.2 m
- Net Weight
- 0.04 kg
- Supply Voltage Limits
- 10-28 V DC
- Width
- 8 mm
- Depth
- 33 mm
Height19 mm
Transmission Frequency500 kHz
MarkingCE
Current Consumption50 mA
Enclosure MaterialULTEM
Front Materialepoxy
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-20-65 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111225EN
