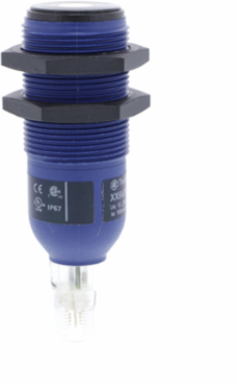

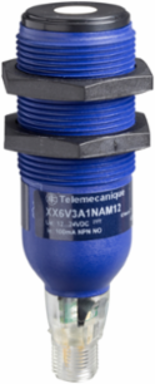

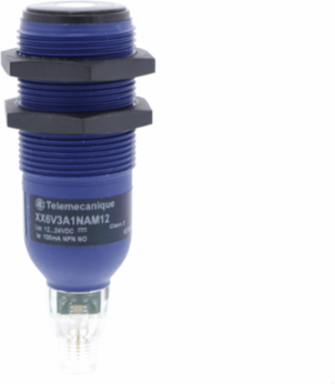

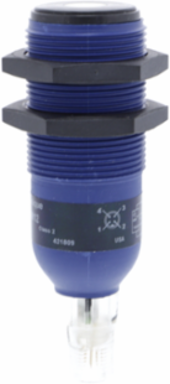

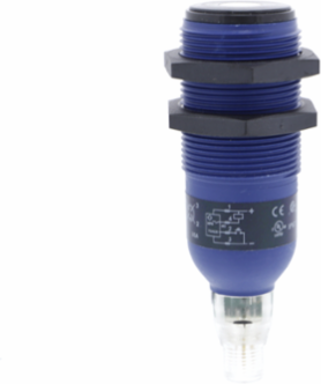

Telemecanique Sensors XX6V3A1NAM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 1 m, NO, M12 connector
- MPN: XX6V3A1NAM12
- PPN: TES-XX6V3A1NAM12
- UNSPSC: 39122230
CAD
$440.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This cylindrical (diffuse system) ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +70°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.1-1 m
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 1-1 m adjustable with remote teach push-button
Discrete Output TypeNPN
Type Of Output Signaldiscrete
Sensor NameXX6
Materialplastic
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle7 °
Sensor Typeultrasonic sensor
Sensor Designcylindrical M30
Complementary
- Repeat Accuracy
- 0.9 %
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Switching Frequency
- <= 70 Hz
- Maximum Voltage Drop
- 1 V
- Transmission Frequency
- 180 kHz
- Threaded Length
- 37 mm
- Blind Zone
- 0-100 mm
- Current Consumption
- 60 mA
- Deviation Angle From 90° Of Object To Be Detected
- -7-7 °
- Maximum Delay Recovery
- 75 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 30 mm
Height96 mm
Minimum Size Of Detected Objectcylinder diameter 50.8 mm 1 m
Maximum Delay Response15 ms
Status Ledsetting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
[Sa] Assured Operating Distance0.1-1 m teach mode)
MarkingCE
Net Weight0.09 kg
Maximum Differential Travel2.5 mm
Thread TypeM30 x 1.5
Maximum Delay First Up75 ms
Enclosure Materialvalox
Front Materialepoxy
Environment
- Product Certifications
- UL || cCSAus
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-70 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
