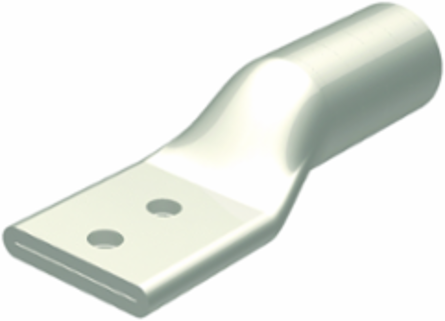

Burndy YA42A5 Aluminum Tube HYLUGTM 2 Hole Terminal, 900 KCMIL, 1/2 Inch Stud, 7.09 Inch Length
- MPN: YA42A5
- UPC: 781810637166
- PPN: BUR-50019974
CAD
$268.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al Tube Hylug, 2 Holes, 900 KCMIL Al, 1/2 IN Stud, 7.09 IN L, Gray, 303 Index.
Features
- UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight
Documentation & Downloads
Specifications
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
General
- Application
- For Aluminum & Copper Conductors
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Material
- Aluminum
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Temperature Rating
- 194
- Type
- YA-A
- UPC 12 Digit
- 7818106371666
Color CodeGray
Die Index303
Item Type3B
Physical Attribute - Number of Holes2
PlatedY
Sub BrandTERMINALS, HYLUG
Trade NameHYLUG™
UPC781810637166
Dimensions
- Dimension - D inch
- 3.13 in
- Dimension - Length Overall inch
- 7.09 in
- Dimension - Pad Width inch
- 1.62 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - L Length Overall mm180 mm
Dimension - N inch0.63 in
Dimension - Strip Length inch2 7/8
Dimension - Z inch0.77 in
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
