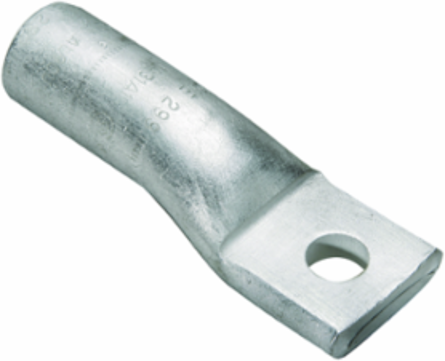

Burndy YA42A1 HYLUGTM Aluminum Tube Lug, 900 KCMIL, 1/2 Inch Stud, 5.32 Inch Length, 35 kV Rating
- MPN: YA42A1
- UPC: 781810637142
- PPN: BUR-50019972
CAD
$207.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al Tube Hylug, 1 Hole, 900 KCMIL Al, 1/2 IN Stud, 5.32 IN L, Gray, 303 Index.
Features
- UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight
Documentation & Downloads
Specifications
Dimensions
- Dimension - D inch
- 1.36 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.32 in
- Dimension - Pad Width inch
- 2.14 in
- Dimension - Stud Size fraction
- 1/2
- Dimension - Z inch
- 0.71 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm135 mm
Dimension - N inch0.63 in
Dimension - Strip Length inch2 7/8
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 900 Kcmil AL;600 Kcmil CU
Conductor - Copper Str Size Range900 Kcmil AL-600 Kcmil CU
General
- Application
- For Aluminum & Copper Conductors
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Material
- Aluminum
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- TERMINALS, HYLUG
- Trade Name
- HYLUG™
- UPC
- 781810637142
Color CodeGray
Die Index303
Item Type3B
Physical Attribute - Number of Crimps Required2
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Temperature Rating194
TypeYA-A
UPC 12 Digit7818106371422
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
