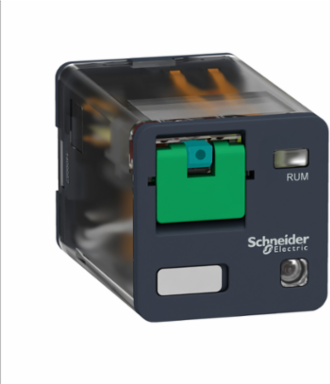

Schneider Electric RUMC32JD Universal Plug-In Relay, 10A, 3 C/O, 12V DC, IP40, Lockable Test Button
- MPN: RUMC32JD
- PPN: SCH-RUMC32JD
CAD
$30.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- with
- Series Name
- Universal
- Device Short Name
- RUM
[Uc] Control Circuit Voltage12 V DC
Product Or Component Typeplug-in relay
Control Typelockable test button
Contacts Type And Composition3 C/O
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 °C
Complementary
- Maximum Switching Capacity
- 2500 VA/280 W
- Operating Rate
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Test Levels
- level A group mounting
- Contacts Material
- AgNi
- Reset Time
- 20 ms at nominal voltage
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs)
- Average Resistance
- 120 Ohm 20 °C +/- 15 %
- [Ie] Rated Operational Current
- 10 A 277 V AC UL || 10 A 30 V DC UL || 10 A 277 V AC same polarity)CSA || 10 A 30 V DC CSA || 5 A 250 V AC NC)IEC || 5 A 28 V DC NC)IEC || 10 A 250 V AC NO)IEC || 10 A 28 V DC NO)IEC
- Rated Operational Voltage Limits
- 9.6...13.2 V DC
- Mechanical Durability
- 5000000 cycles
- Operating Time
- 20 ms at nominal voltage
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Electrical Durability100000 cycles resistive
Shape Of Pincylindrical
Net Weight0.086 kg
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Average Coil Consumption1.4 W
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Operating Positionany position
Load Current10 A 250 V AC || 10 A 28 V DC
Minimum Switching Capacity170 mW 10 mA, 17 V
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- UL || CSA || EAC
- Pollution Degree
- 2
- Dielectric Strength
- 1500 V AC between contacts micro disconnection || 2500 V AC between coil and contact reinforced || 2000 V AC between poles basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsIEC 61810-1 || UL 508 || CSA C22.2 No 14
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40
