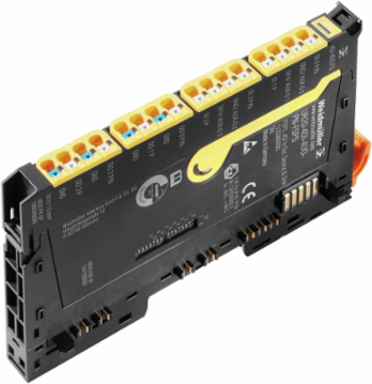

Weidmuller 2464570000 UR20-4DI-4DO-PN-FSPS-V2
Weidmuller 2464570000 UR20-4DI-4DO-PN-FSPS-V2
- MPN: 2464570000
- PPN: WDM-2464570000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$939.91/ EA
Description
Remote I/O module, IP20, Safety, Digital signals, 4-channel
Specifications
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Surge voltage category
- II
- UL 94 flammability rating
- V-0
Air humidity (storage)10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage500 V
Vibration resistance5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Approvals
- Approvals
- CULUS, DEMKOATEX, FUSAFETY, IECEXULD
- UL File Number Search
- E141197
ROHSConform
Digital Inputs
- Individual channel diagnosis
- Yes
- Input voltage, high
- > 11 V
- Module diagnosis
- Yes
- Number of digital inputs
- 4
- Sensor supply
- Yes
Input filterconfigurable
Input voltage, low< 5 V
Number4
Reverse polarity protectionYes
TypeTypes 1 and 3, EN 61131-2
Dimensions And Weights
- Width
- 11.5 mm
- Height
- 120 mm
- Depth
- 76 mm
- Mounting dimension - height
- 128 mm
Width (inches)0.453 inch
Height (inches)4.724 inch
Depth (inches)2.992 inch
Net weight89.7 g
Digital Outputs
- Actuator connection
- 2-wire
- Individual channel diagnosis
- Yes
- Number
- 4
- Output current per channel, max.
- 0.5 A
- Response time of the protective circuit (current limiting)
- < 100μs
- Type
- Types 1 and 3, EN 61131-2
Feedback-freeNo
Module diagnosisYes
Number of digital outputs4
Output current per module, max.2 A
Short-circuit-proofYes
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min. (AWG)
- AWG 26
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire cross-section, solid, min.0.14 mm²
Safety-Related Data
- MTTF
- 100 Years
Proportion of safety-related outages (SFF)98 %
Classifications
- ETIM 6.0
- EC001597
- eClass 9.0
- 27-24-26-02
- eClass 10.0
- 27-24-26-02
ETIM 7.0EC001597
eClass 9.127-24-26-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Field bus protocol
- PROFINET IRT, PROFIBUS DP-V1
- Interface
- u-remote system bus
- Possible connection
- 2-wire, 4-wire
Galvanic isolation500 V DC between the current paths
Module typeSafe input and output module
Transmission speed of system bus, max.48 Mbit
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -20 °C ... +60 °C
Operating temperature, min.-20 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C ... +85 °C
Power Supply
- Current consumption from I
- 30 mA
- Voltage supply
- 24 V DC +20 %/ -15 %, via the system bus
Reverse polarity protectionYes
