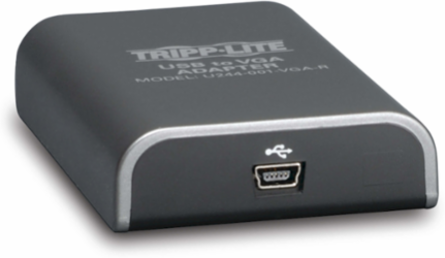

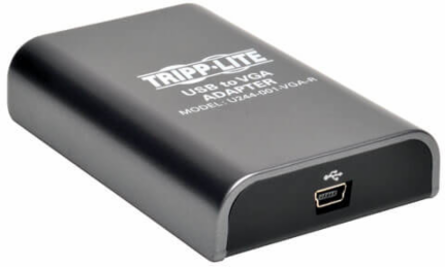

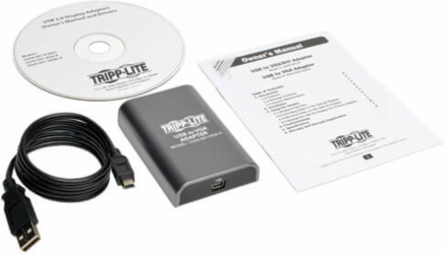

Tripp Lite U244-001-VGA-R USB 2.0 to VGA Dual-Monitor Adapter, 1920 x 1080 @ 60 Hz, 128 MB SDRAM
- MPN: U244-001-VGA-R
- UPC: 037332165107
- PPN: TRP-U244-001-VGA-R
CAD
$57.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

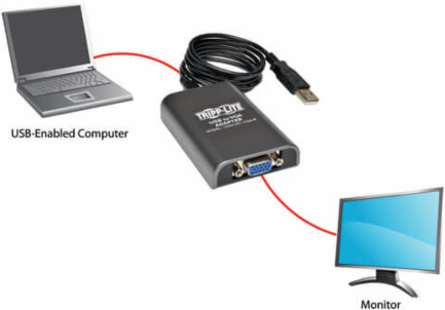

Connect a VGA monitor or projector to the USB 2.0 port of your computer or laptop. Use up to 6 adapters to connect up to 6 additional displays to a source. Ideal for multitasking, presentations and editing documents.
Features
- Extend video to a second display or duplicate one video on both
- Add up to 6 adapters to connect a total of 7 displays
- No external power supply needed
- Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Compatible with Windows and Mac computers
- Compatible with Ubuntu 14.04.2
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- 1920 x 1080 (1080p) @60Hz
- Driver Required
- Yes
USB SpecificationUSB 2.0 (up to 480 Mbps)
TechnologyUSB; USB 2.0 (High Speed); VGA/SVGA
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1

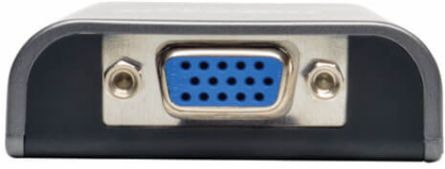

- HD15 (FEMALE)
Side A - Connector 1USB A (MALE)
Connector PlatingNickel
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 8.50 x 6.00 x 2.25
- Unit Dimensions (hwd / in.)
- 0.71 x 3.3 x 2.2
- Unit Weight (lbs.)
- 0.12
Material of ConstructionABS
Shipping Weight (lbs.)0.50
Unit Packaging TypeClamshell
Input
- Bus Powered
- Yes
Environmental
- Operating Temperature Range
- 50 to 104 F (10 to 40 C)
- Relative Humidity
- 0% to 85% RH, Non-Condensing
Storage Temperature Range-4 to 158 F (-20 to 70 C)
Overview
- UPC Code
- 037332165107
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
