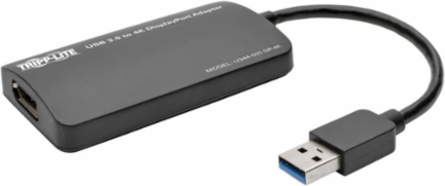

Tripp Lite U344-001-DP-4K USB 3.0 SuperSpeed to 4K DisplayPort Dual-Monitor Adapter, 512 MB SDRAM
- MPN: U344-001-DP-4K
- UPC: 037332192134
- PPN: TRP-U344-001-DP-4K
CAD
$107.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

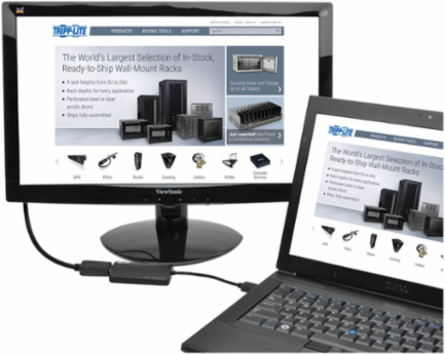

Connects an Ultra High Definition (UHD) 4K x 2K DisplayPort display to your computer or laptop’s USB 3.0 port, even if the device’s graphics card doesn’t support UHD. Ideal for office workstations and presentations.
Features
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
- Displayport 1.2
- Data transfer rates up to 5 Gbps
- Connect up to 6 adapters at a time
- Auto-resume from hibernation and suspend modes
- Backward compatible with USB 2.0
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | 3840 x 2160 (4K x 2K) @30Hz |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Technology | DisplayPort; USB; USB 3.0 (SuperSpeed) |
| Displayport Specification | 1.1a |
|---|---|
| Driver Required | Yes |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 1 |
|---|---|

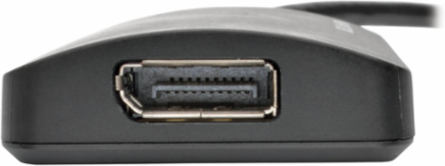

| Side B - Connector 1 | DISPLAYPORT (FEMALE) |

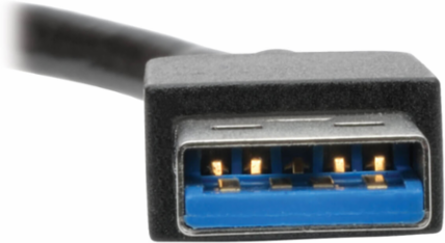

| Side A - Connector 1 | USB 3.0 A (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PC, ABS |
| Shipping Weight (lbs.) | 0.37 |
| Unit Packaging Type | Box |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 5.43 x 6.50 x 1.57 |
| Unit Dimensions (hwd / in.) | 0.6 x 3.2 x 1.8 |
| Unit Weight (lbs.) | 0.10 |
Input
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 50 to 104 F (10 to 40 C) |
|---|---|
| Relative Humidity | 0% to 90 RH, Non-Condensing |
| Storage Temperature Range | -4 to 158 F (-20 to 70 C) |
|---|
Overview
| UPC Code | 037332192134 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
