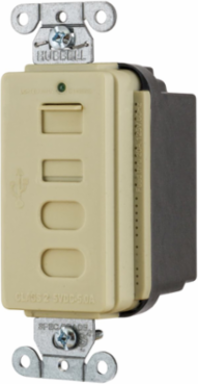

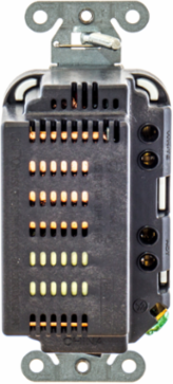

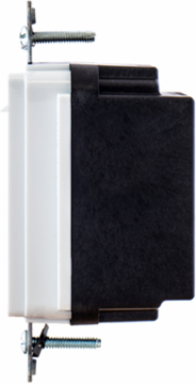

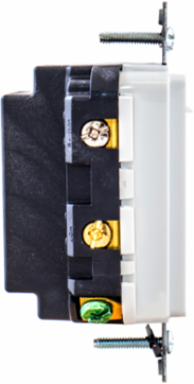

Hubbell Wiring Device-Kellems USB4ACI 4-Port USB Charger, 5A, 5V/9V, Ivory
- MPN: USB4ACI
- UPC: 883778308963
- PPN: HBL-USB4ACI
- UNSPSC: 39121406
CAD
$102.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This device will communicate with mobile devices to determine what voltage is required and provide 5V or 9V, based on the make and model. The two USB Type A ports offer high power at 5 volts.
Features
- Four USB ports 5 Amp, 2 Type A and 2 Type-C USB, 5V DC, class 2.0
- Fast charge enabled modulates up to 9 volts
- Switch activated port door
- when open enables power
- when closed, all power is switched off, for a “zero” no-load draw
- Green LED indicator to show USB power available
- Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
Documentation & Downloads
Specifications
Additional
- Amperage
- 5 A
- USB Ports
- 4 (2 Type A, 2 Type-C)
- Terminal Accommodation
- #14-#10 AWG copper stranded or solid conductor
- Width
- 2.2 in
- Material Face
- Reinforced Thermoplastic
- Mounting Strap Material
- Galvanized Steel
- Mounting Screws Material
- Zinc Plated Steel
- USB Port Material
- Stainless Steel
- Compliance
- cULus, FCC Approved
- Country of Origin
- CN
Voltage5 V DC, up to 9 V DC
Operating Temperature-40°C to 75°C
Dielectric Voltage Withstand1500 V minimum
TypeTwo Type A, Two Type-C USB Ports
Material BaseReinforced Thermoplastic
Auto Self-grounding Staple MaterialStainless Steel
Terminal Screws MaterialPlated Steel
Flammability RatingUL 94V-2
ColorIvory
USB Port Durability10,000 plug insertions
