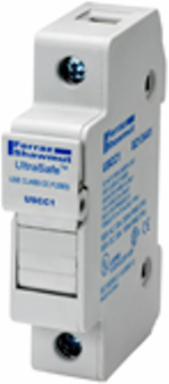

Mersen USCC1I-AC300 UltraSafe Module Fuseholder Class CC, 1 Pole, 0-30 A, IP20 Finger-Safe
Mersen USCC1I-AC300 UltraSafe Module Fuseholder Class CC, 1 Pole, 0-30 A, IP20 Finger-Safe
- MPN: USCC1I-AC300
- PPN: FER-USCC1I-AC300
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$88.88/ EA
Description
Mersen UltraSafe modular fuseholders introduce a new level of safety for class CC and midget fuses up to 30 amperes. UltraSafe fuseholders qualify as "finger safe" under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe fuseholders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. UltraSafe fuseholders save up to 15% mounting space and any combination can be snapped onto 35mm DIN rail for extra savings in panel building time. Choose class CC fuses for Type "2" no-damage protection, one of the safest protection packages in the industry. The UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Features
- IP20 Finger-Safe
- Optional visual blown fuse indication
- Quick, tool-free, easy fuse change outs
- Compact footprint
- DIN-rail mounting
Specifications
Product Details
- CE conformity
- Yes
- Standards
- UL Listed to standard UL4248-4, File E52283 CSA Certified C22.2, Class 6225, File 32169
- Body Material
- Polyamide
- Wiring Range
- #6 to #14 Solid or Stranded
- Ampere Range
- 0-30 A
- DC Voltage
- 600 VDC
- Lead Free
- Yes
- Number of Poles
- 1
- Connection Terminal Type
- Pressure Plate
- UL Certification
- E52283 IZLT.E52283
Materials ContactTin-plated Copper
ClassClass CC
AC Voltage600 VAC
EnclosureIP20
SCCR200kA
ApplicationsAll circuits (including branch-circuits) up to 600 volts (AC or DC) for motors, control circuits, transformers, etc.
CSA Certification6225-01 032169_0_000
ROHS CompliantYes
MountingDIN-rail
