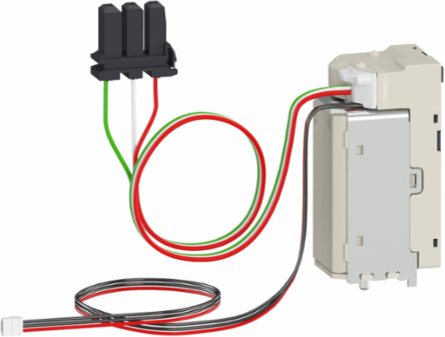

Schneider Electric LV836670SP MN undervoltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 100/130VAC 50/60Hz, 100/130VDC, spare part
- MPN: LV836670SP
- PPN: SCH-LV836670SP
CAD
$550.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MN undervoltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 100/130VAC 50/60Hz, 100/130VDC, spare part
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Persona Type Ids | LC, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Operating Time | 45 ms on opening MasterPact MTZ195 ms on opening MasterPact MTZ2, 95 ms on opening MasterPact MTZ3 |
| [Uc] Control Circuit Voltage | 100...130 V AC 50/60 Hz, 100...130 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.4309142441860465 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 16 kg CO2 eq., 16.075726744186046 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Use Carbon Footprint | 161.57 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311021EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1943 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Control Type | communicating |
| Device Short Name | MN diag |
| Mounting Mode | fixed/drawout |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | 1 instruction sheet |
| Returnability | No |
| Supply Holding Power | 4.5 W |
| Threshold Tripping Voltage | 0.35...0.7 Un opening0.85 Un closing |
| Voltage Release Type | instantaneous |
| Pep Code | ENVPEP2311021EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 68 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 161.57 |
| Ecotoxicity (Fresh Water) (Ctue) Distribution [A4] | 0.0198 |
| Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] | 3.2148 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 23.246 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 4906.7 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 4116.3 |
| Water Use (M3 Eq) Operational Energy Use [B6] | 5.717 |
| Persona Type Names | Contractor, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Signalling Function | error, coil powered, MN open |
| Carbon Footprint Of The Distribution Phase [A4] | 0.029422674418604657, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.032749273255813956, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 162 kg CO2 eq., 161.57 |
| Local Publishable Date | 2025-01-07 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | safety |
| Energy Efficiency Optimized | False |
| Offer Type | spare part |
| Product Or Component Type | undervoltage release |
| Range | MasterPact |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 178 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The MN release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service duration: 10 years& 10It complies with IEC 60947-2 standard. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 394.2 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 225.000 g |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 161.35 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 4116.3 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 1740 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 240.23 |
| Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] | 1.5738 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 790.44 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 790.44 |
| Customs Code | 8536308000 |
