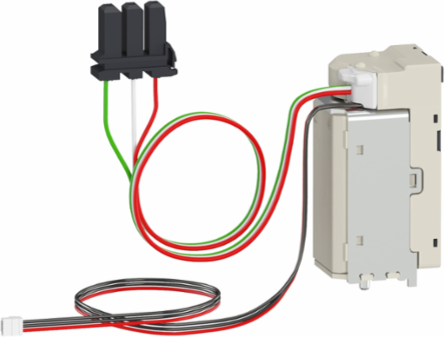

Schneider Electric LV836668SP MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, diagnostics and communicating, 24VAC 50/60Hz, 24/30VDC, spare part
- MPN: LV836668SP
- PPN: SCH-LV836668SP
CAD
$550.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, diagnostics and communicating, 24VAC 50/60Hz, 24/30VDC, spare part
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 45 ms on opening MasterPact MTZ195 ms on opening MasterPact MTZ2, 95 ms on opening MasterPact MTZ3
- Carbon Footprint Of The Distribution Phase [A4]
- 0.029553441860465116, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.03289482558139535, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 162 kg CO2 eq., 161.57
- Local Publishable Date
- 2025-01-07
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- safety
- Energy Efficiency Optimized
- False
- Offer Type
- spare part
- Product Or Component Type
- undervoltage release
- Range
- MasterPact
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 178 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The MN release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service duration: 10 years& 10It complies with IEC 60947-2 standard.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 394.2
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz24...30 V DC
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 161.57
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 1740
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 240.23
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.5738
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 790.44
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 790.44
- Customs Code
- 8536308000
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Signalling Functionerror, MN open, coil powered
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.43282941860465113
Carbon Footprint Of The Manufacturing Phase [A1 To A3]16 kg CO2 eq., 16.14717441860465
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Use Carbon Footprint161.57
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1943
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Control Typecommunicating
Device Short NameMN diag
Mounting Modefixed/drawout
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipment1 instruction sheet
ReturnabilityNo
Supply Holding Power4.5 W
Threshold Tripping Voltage0.35...0.7 Un opening0.85 Un closing
Voltage Release Typeinstantaneous
Pep CodeENVPEP2311021EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %68
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)226.000 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]161.35
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4116.3
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]3.2148
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]23.246
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4906.7
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4116.3
Water Use (M3 Eq) Operational Energy Use [B6]5.717
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Carbon Footprint
- 178.21245210465116
- Environmental Disclosure
- ENVPEP2311021EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2311021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Circularity ProfileENVEOLI2311021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- undervoltage release
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
