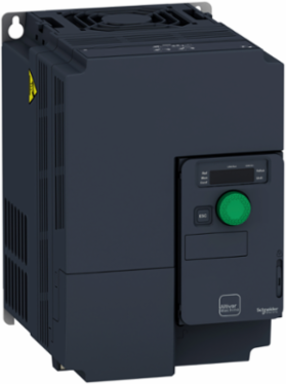

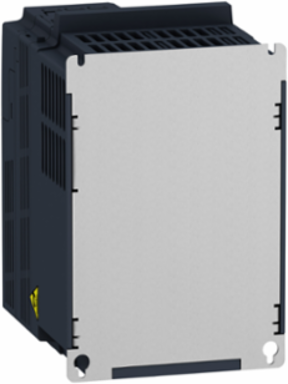

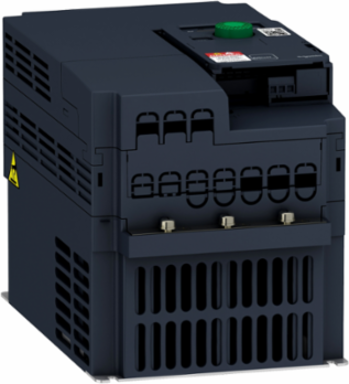

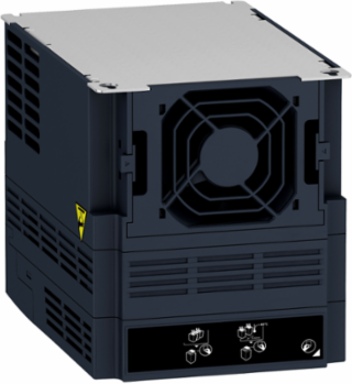

Schneider Electric ATV320U55S6C Variable Speed Drive, 5.5 kW, 525-600V, Compact Design
- MPN: ATV320U55S6C
- PPN: SCH-ATV320U55S6C
CAD
$1486.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 525V to 600V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 3.5kg and its dimensions are 150mm wide, 232mm high, 172mm deep. Altivar Machine ATV320 meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Features
- Engineered specifically for 7.5 HP (5.5 kW) synchronous and asynchronous AC motors running on demanding 525-600V three-phase power, this Altivar Machine VFD delivers highly precise, reliable torque control. It effortlessly manages robust applications like material handling conveyors, packaging equipment, and industrial hoists, minimizing mechanical stress to dramatically extend the lifespan of your expensive drive train components.
- Featuring Schneider Electric's specialized "Compact" (C-type) physical footprint, this variable speed drive is specifically designed for side-by-side mounting inside tightly packed electrical cabinets. This space-saving geometry drastically reduces the overall size and cost of OEM machine enclosures, giving panel builders more flexibility while simplifying wire routing and thermal management.
- Built with comprehensive integrated machine safety—including Safe Torque Off (STO) as standard, alongside SS1, SLS, SMS, and GDL functions—this drive eliminates the need for bulky, expensive external safety relays. This built-in protection significantly simplifies your panel wiring schematics, reduces hardware costs, and ensures your automated equipment instantly complies with rigorous SIL 3 and PLe international safety standards.
- Equipped with built-in Altivar Logic programmable functions and standard Modbus serial and CANopen communication ports, this intelligent drive can independently execute complex, custom motor control sequences. This smart decentralization offloads basic automation tasks from your main PLC, reducing network traffic and lowering the total hardware cost of your industrial control system.
Documentation & Downloads
Specifications
Additional
- Power
- 5.5 kW heavy duty
- Nominal Output Current
- 9.0 A
- Apparent Power
- 7.8 kVA (600 V heavy duty)
- Nominal Switching Frequency
- 4 kHz
- Transient Overtorque
- 170-200 % of nominal motor torque
- Overvoltage Category
- III
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms

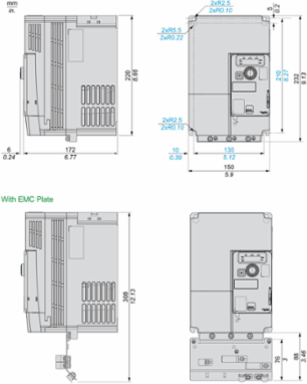

- Length / Depth
- 6.77 in (172 mm)
- Height
- 9.13 in (232 mm)
- Mounting Mode
- Wall mount
- Format
- Compact
- IP Degree of Protection
- IP20
- Compliance
- CE, ATEX, UL, CSA, EAC, RCM, KC
- RoHS
- Yes
- Environmental Class
- Class 3C3 and Class 3S2 (IEC 60721-3-3)
- Ambient Air Temperature for Operation
- -10 to 50 °C without derating, 50 to 60 °C with derating
Voltage525-600 V AC - 15 to 10%
Line Current8.4 A (525 V heavy duty), 7.5 A (600 V heavy duty)
Maximum Output Frequency0.599 kHz
Switching Frequency Range2-16 kHz adjustable, 4-16 kHz with derating
Network Frequency50-60 Hz
Prospective Line Isc22 kA
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13-200 Hz
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2-13 Hz
Width5.91 in (150 mm)
Net Weight7.72 lb (3.5 kg)
Operating PositionVertical ±10°
MaterialNot specified
Protection Typeinput phase breaks, overcurrent between output phases and earth, overheating, short-circuit between motor phases, thermal protection
StandardsIEC 61800-5-1, IEC 61000 series
Mercury FreeYes
Permitted Relative HumidityClass 3K5 (EN 60721-3)
Ambient Air Temperature for Storage-25 to 70 °C
