Schneider Electric ATV320U22M2WS Altivar Machine 2.2kW Variable Speed Drive, 200-240V, IP65, 7.8kg
- MPN: ATV320U22M2WS
- PPN: SCH-ATV320U22M2WS
CAD
$1240.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

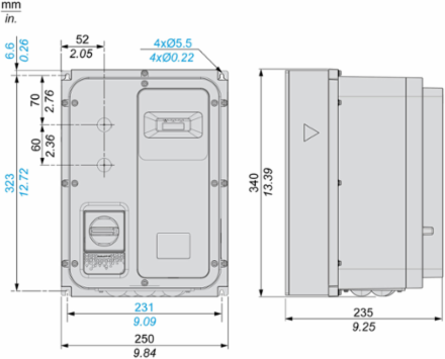

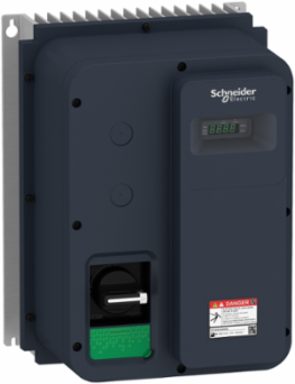

Altivar Machine 2.2kW Variable Speed Drive, 200-240V, IP65, 7.8kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth235.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 40 A
- Maximum Input Current Per Phase
- 24.0 A
- Maximum Output Voltage
- 240 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating3 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2, Yes
- Persona Type Names
- End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Sampling Duration
- 2 ms AI1, AI2, AI3) - analog input, 2 ms AQ1) - analog output
- Switching Frequency
- 2...16 kHz adjustable, 4...16 kHz with derating factor
- [Us] Rated Supply Voltage
- 200...240 V, 200...240 V - 15...10 %
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
- Carbon Footprint Of The Distribution Phase [A4]
- 1.8245977928394215, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 5 kg CO2 eq., 5.4470746916183055
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 1 389 kg CO2 eq., 1388.7238561279034
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1908004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1816
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- true
- Application In Domestic And Commercial Area Permitted
- false
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Emc Filter
- Class C2 EMC filter integrated
- Format Of The Drive
- enclosed
- Maximum Associated Fuse Rating
- 40 A
- Method Of Access
- slave CANopen
- Mounting Mode
- wall mount
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Other
- 1.0
- Number Of Hw Interfaces Profinet
- 0.0
- Number Of Hw Interfaces Serial Rs42
- 0.0
- Number Of Hw Interfaces Serial Tty
- 0.0
- Number Of Output Phases
- 1
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Power Dissipation In W
- self-cooled 99.0 W 200 V 4 kHz
- Power Loss Static Current Independent
- 99.0 W
- Product Or Component Type
- variable speed drive
- Prospective Line Isc
- 1 kA
- Regulation Loop
- adjustable PID regulator
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Software Version
- v6.2.5-6
- Supporting Protocol For Bacnet
- false
- Supporting Protocol For Devicenet
- true
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- true
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Synchronous Motor Control Profile
- vector control without sensor
- Transient Overtorque
- 170-200 % of nominal motor torque
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Pep Code
- ENVPEP1908004EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 83
- Width Nominal
- 250 mm
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 9.8 kg
- Warranty (In Months)
- 18
Persona Type IdsEU, OM, OM8
Asynchronous Motor Control Profilevoltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
Line Current24.0 A 200 V heavy duty), 20.2 A 240 V heavy duty)
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]8.262011275849908, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]285 kg CO2 eq., 284.91488343183215
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier1
Function OptionStandard
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Apparent Power4.8 kVA 240 V heavy duty)
Base Load Current At High Overload3.3 A
Capacity Of Dc Link1890 µF
Design Of Frequency ChangerU converter
Encoder ProtocolRS 422
Housing Materialplastic
Maximum Input Current Per Phase24.0 A
Motor Power Kw2.2 kW heavy duty
Network Frequency50-60 Hz
Number Of Hw Interfaces Industrial Ethernet0.0
Number Of Hw Interfaces Parallel0.0
Number Of Hw Interfaces Serial Rs230.0
Number Of Hw Interfaces Serial Rs4851.0
Number Of Hw Interfaces Usb0.0
Operating Element Presenttrue
Optical Interface Presentfalse
Phasesingle phase
Power Loss Per Device Current Dependent99.0 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationcomplex machines
Range Of ProductAltivar Machine ATV320
Relative Symmetric Mains Voltage Tolerance10 %
ReturnabilityYes
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemstrue
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 689 kg CO2 eq.
UpdatabilityUpgradeable through digital modules
With Safety Function Safe Programmable Logicfalse
Motor Power Kw 10 N Motor Power Kw2.2 kW
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP65/UL type 1 conditions, at 380V to 500V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in "standby" phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the "Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1".
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh3435.75
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal340 mm
Emc Limit Value (Complied)true
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C without derating, -10-40 °C without derating, -10-60 °C, -10-60 °C, -10-40 °C without derating, -10-40 °C without derating, 40-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1908004EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 12
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1908004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1689.1724233200434
Environmental DisclosureENVPEP1908004EN
Ip Degree Of ProtectionIP65
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- single phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Type
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Relay Output Type
- configurable relay logic R1A 1 NO 100000 cycles, configurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
- Discrete Output Number
- 3
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 2.2 kW
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
Analogue Output Number1
Maximum Output Frequency0.599 kHz
Nominal Output Current11.0 A
Surge Protection And Filtering Attributes
- Emc Filter
- Class C2 EMC filter integrated
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases1
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$1240.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
CAD$1240.68/ EA
Loading add to cart quantity...
