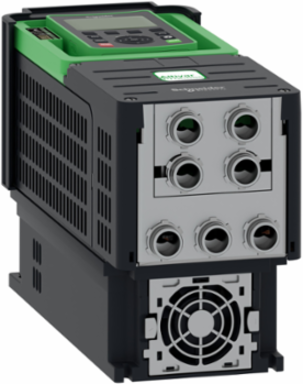

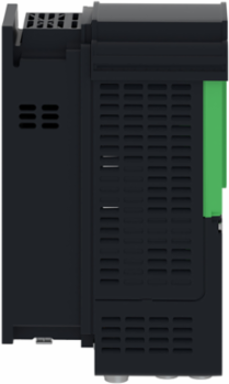

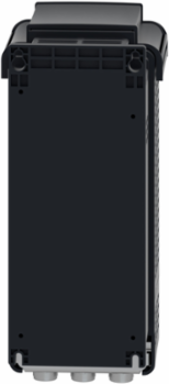

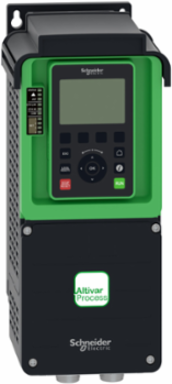

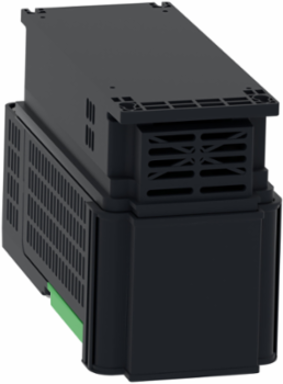

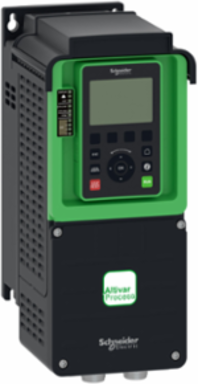

Schneider Electric ATV630U30M3 Variable Speed Drive, 3 kW, 200-240V, IP21, Wall Mounted

MPN: ATV630U30M3
PPN: SCH-ATV630U30M3

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

CAD

$1480.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Variable Speed Drive, 3 kW, 200-240V, IP21, Wall Mounted

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Indonesia

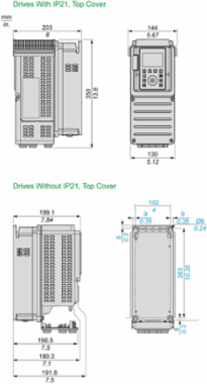

Depth203 mm

Communications & Management Attributes

Communication Port Protocol: Modbus TCP, Ethernet, Modbus serial

Complementary Attributes

Maximum Thdi: <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12

Maximum Associated Fuse Rating: 20.0 A

Maximum Input Current Per Phase: 11.5 A

Maximum Output Voltage: 240.0 V

Maximum Transient Current: 16.8 A 60 s heavy duty)15.1 A 60 s normal duty)

Brake Chopper Integratedfalse

Maximum Horse Power Rating3 hp heavy duty4 hp normal duty

Maximum Output Frequency500 kHz

Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC

Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC

Important Information Attributes

Persona Type Ids: EU, OM, OM8, SI

Asynchronous Motor Control Profile: constant torque standard, optimized torque mode, variable torque standard

Discrete And Process Manufacturing: food and beverage processing pumpfood and beverage processing fanwater and waste water electro submersible pump (ESP)water and waste water screw compressorwater and waste water compressor centrifugalwater and waste water fanbuilding - HVAC compressor centrifugalfood and beverage processing other applicationmining mineral and metal fan, mining mineral and metal pump, oil and gas fan, water and waste water other application, building - HVAC screw compressor, food and beverage processing atomization, oil and gas electro submersible pump (ESP), oil and gas water injection pump, oil and gas jet fuel pump, oil and gas compressor for refinery, water and waste water centrifuge pump, water and waste water positive displacement pump, water and waste water screw pump, water and waste water lobe compressor, water and waste water conveyor, water and waste water mixer

Electromagnetic Compatibility: electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Line Current: 11.5 A 200 V normal duty)9.9 A 240 V normal duty)8.7 A 200 V heavy duty), 7.6 A 240 V heavy duty)

Local Signalling: 3 LEDs for local diagnostic3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage

Noise Level: 86/188/EEC, 54.5 dB

Product Destination: asynchronous motors, synchronous motors

Sampling Duration: 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output

Synchronous Motor Control Profile: permanent magnet motor, synchronous reluctance motor

Certificate Agency: DNV-GL, TÜV, ATEX zone 2/22, ATEX INERIS, CSA, UL

Environmental Class (During Operation): class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3

Environmental Class (During Transport): class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 6.344136413817093, 6 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 84 kg CO2 eq., 84.3071825085669

Local Data Status: Publishable

Return Indicator: Y

Stock Policy: 2

Serviceability: No

Field Service Division: IDIBS

Average Percentage Of Asi Certified Metals: 100 %

Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI1501005EN

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: No

Rohs Eur Conformity Date: 1923

China Rohs In Scope: Yes

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: YES_SSI2Yes

Tier Id: 2

Function Option Id: ADVANCED

Market Segmentation Id: INDUSTRIAL

Product Kit Identifier: N

4 Quadrant Operation Possible: false

Application In Domestic And Commercial Area Permitted: false

Base Load Current At High Overload: 11.2 A

Braking To Standstill: by DC injection

Computer Port: true

Design Of Frequency Changer: U converter

Emc Filter: without EMC filter

Exchange Mode: half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Housing Material: plastic

Marking: CE

Maximum Input Current Per Phase: 11.5 A

Motor Power Kw: 3 kW normal duty)2.2 kW heavy duty)

Mounting Mode: wall mount

Nominal Switching Frequency: 4 kHz

Number Of Hw Interfaces Industrial Ethernet: 1

Number Of Output Phases: 3

Operating Position: vertical +/- 10 degree

Overvoltage Category: III

Phase: 3 phase

Power Loss Per Device Current Dependent: 151.0 W

Power Range: 2.2-3 kW 200-240 V 3 phase

Product Or Component Type: variable speed drive

Prospective Line Isc: 50 kA

Range Of Product: Altivar Process ATV600

Regulation Loop: adjustable PID regulator

Relative Symmetric Network Frequency Tolerance: 5 %

Safety Function: STO (safe torque off) SIL 3

Software Version: v6.2.5-6

Supply Frequency: 50...60 Hz - 5...5 %

Supporting Protocol For Bacnet: false

Supporting Protocol For Devicenet: false

Supporting Protocol For Foundation Fieldbus: false

Supporting Protocol For Knx: false

Supporting Protocol For Modbus: true

Supporting Protocol For Profibus: true

Supporting Protocol For Profinet Io: true

Supporting Protocol For Safetybus P: false

Supporting Protocol For Suconet: false

Switching Frequency: 2...12 kHz adjustable4...12 kHz with derating factor

Transmission Frame: RTU

Type Of Polarization: no impedance

Vibration Resistance: 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Application In Industrial Area Permitted: true

Pep Code: ENVPEP1501005EN

Pep Verification Date: 2025-11-01

Psr Version: PSR-0005-ed3.1-EN-2023 12 08

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime In Y: 10

Energy Model - Manufacturing [A1-a3]: Electricity Mix; Low voltage; 2020; Indonesia, ID

Energy Model - Use [B6]: Electricity Mix; Low voltage; 2020; Europe, EU-27

Recyclability Potential In %: 77

Width Nominal: 144 mm

Emc Limit Value (Complied): false

Maximum Acceleration Under Shock Load (During Storage): 150 m/s² at 11 ms

Maximum Acceleration Under Vibrational Stress (During Operation): 10 m/s² at 13...200 Hz

Maximum Acceleration Under Vibratory Load (During Transport): 10 m/s² at 13...200 Hz

Maximum Deflection Under Vibratory Load (During Storage): 1.5 mm at 2...13 Hz

Permitted Relative Humidity (During Operation): class 3K5 according to EN 60721-3

Permitted Relative Humidity (During Transport): class 2K5 according to EN 60721-3

Supporting Protocol For Data-highway: false

Supporting Protocol For Interbus-safety: false

With Safety Function Safe Brake Management (Sbc/Sbt): false

With Safety Function Safe Operating Stop (Sos): false

With Safety Function Safe Speed Monitor (Ssm): false

With Safety Function Safe Torque Off (Sto): true

With Safety Function Safely Limited Speed (Sls): false

Nbr. Of Units In Pkg.: 1

Take-back: No

Customs Code: 8504404000

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator

Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial

Electrical Connectioncontrol removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGmotor screw terminal 4...6 mm² 12 AWG...10 AWG, line side screw terminal 2.5...6 mm² 14 AWG...10 AWG

Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth

Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output

Motor Slip Compensationadjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load

Option Cardslot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink

Protection Typesafe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive

Supplyexternal supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection

Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

[Ue] Rated Operational Voltage200...240 V 3 kW 3 hp heavy duty, 200...240 V 2.2 kW 4 hp normal duty

Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1

Carbon Footprint Of The Distribution Phase [A4]1.1087064448393595, 1 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]3 kg CO2 eq., 3.4583892972556414

Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 672 kg CO2 eq., 1671.7227993409122

Local Publishable Date2026-03-26

Stocking FlagN

Device TypeVariable speed drive - VSD Compacts

TraceabilityYes

Average Life Duration10 year(s)

Weee ApplicabilityFinished product

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

China Rohs Label5

Without Single Use PlasticYes

Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT

Tier2

Function OptionAdvanced

Market SegmentationIndustrial

1 Phase Low Current Possiblefalse

Apparent Power4.1 kVA 240 V normal duty)3.2 kVA 240 V heavy duty)

Average Percentage Of Recycled Plastic Content3 %

Base Load Current At Low Overload13.7 A

Capacity Of Dc Link1360.0 µF

Data Format8 bits, configurable odd, even or no parity

Device Short NameATV630

Enclosure Mountingwall mounted

Frequency Resolutiondisplay unit 0.1 Hzanalog input 0.012/50 Hz

Isolationbetween power and control terminals

Maximum Associated Fuse Rating20.0 A

Method Of Accessslave Modbus TCP

Motor Starter Typevariable speed drive

Network Frequency50-60 Hz

Number Of Addresses1-247 Modbus serial

Number Of Hw Interfaces Serial Rs4851

Operating Element Presenttrue

Optical Interface Presentfalse

Permissible Temporary Current Boost1.1 x In 60 s normal duty)1.5 x In 60 s heavy duty)

Power Dissipation In Wnatural convection 34 W 200 V 4 kHzforced convection 104 W 200 V 4 kHz

Power Loss Static Current Independent13.0 W

Product AvailabilityStock - Normally stocked in distribution facility

Product Specific Applicationprocess and utilities

Quantity Per Set1

Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)

Relative Symmetric Mains Voltage Tolerance10 %

ReturnabilityYes

Shock Resistance15 gn 11 ms IEC 60068-2-27

Specific Applicationutility

Supporting Protocol For Asifalse

Supporting Protocol For Cantrue

Supporting Protocol For Devicenet Safetyfalse

Supporting Protocol For Interbusfalse

Supporting Protocol For Lonfalse

Supporting Protocol For Other Bus Systemsfalse

Supporting Protocol For Profinet Cbatrue

Supporting Protocol For Profisafefalse

Supporting Protocol For Sercosfalse

Sustainable PackagingYes

Total Lifecycle Carbon Footprint1 767 kg CO2 eq.

Type Of Coolingforced convection

UpdatabilityUpgradeable through digital modules

Volume Of Cooling Air38 m3/h

With Safety Function Safe Programmable Logicfalse

Motor Power Kw 18 N Motor Power Kw2.2 kW

Database Version2024-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 5,5 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.

Functional-unit Unitunit

Energy Consumption On Product Lifetime In Kwh4135.899

Energy Model - Installation [A5]No energy used

Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.

Height Nominal350 mm

[Us] Rated Supply Voltage200...240 V200...240 V - 15...10 %

Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms

Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms

Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz

Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz

Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz

Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3

Supporting Protocol For As-interface Safety At Workfalse

Supporting Protocol For Ethernet/Iptrue

Supporting Protocol For Tcp/Iptrue

With Safety Function Safe Direction (Sdi)false

With Safety Function Safe Position (Sp)false

With Safety Function Safe Stop 1 (Ss1)false

With Safety Function Safely Limited Position (Slp)false

With Sft Fct Safe Stop 2 (Ss2)false

Package Weight(Lbs)6.046 kg

Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation: -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)

Ambient Air Transport Temperature: -40-70 °C, -40-70 °C

Operating Altitude: <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m

Recycled Metal Content At Cr Level: 0 %

Mercury Free: Yes

Circularity Profile: ENVEOLI1501005EN

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Code: ENVPEP1501005EN

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent external review

Ambient Air Temperature For Storage-40-70 °C, -40-70 °C

Ip Degree Of ProtectionIP21IP21IEC 61800-5-1, IP21IEC 60529

Take BackNo

China Rohs RegulationX

Carbon Footprint1766.9412140053912

Environmental DisclosureENVPEP1501005EN

Nema Degree Of ProtectionNEMA 1

Packaging Without Single Use PlasticYes

Relative Humidity5-95 % without condensation IEC 60068-2-3

Pep Verification Date2025-11-01

Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Phase: 3 phase

Range Of Product: Altivar Process ATV600

Product Or Component Typevariable speed drive

ETIM

ETIM 8: EC001857

ETIM 9EC001857

Output Attributes

Analogue Output Type: software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA

Output Voltage: <= power supply voltage, <= power supply voltage

Analogue Output Number: 2

Discrete Output Number: 0

Maximum Output Voltage: 240.0 V

Nominal Output Power: 3.0 kW

Speed Drive Output Frequency: 0.1-500 Hz

Discrete Output Typerelay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA

Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles

Continuous Output Current13.7 A 4 kHz normal duty11.2 A 4 kHz heavy duty

Maximum Output Frequency500 kHz

Nominal Output Current13.7 A

Relay Output Number3

Surge Protection And Filtering Attributes

Emc Filter: without EMC filter

Input Attributes

Analogue Input Type: AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Input Compatibility: DI1...DI6 discrete input level 1 PLC IEC 61131-2DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
