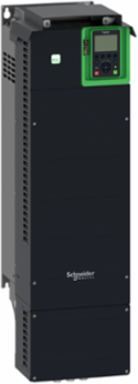

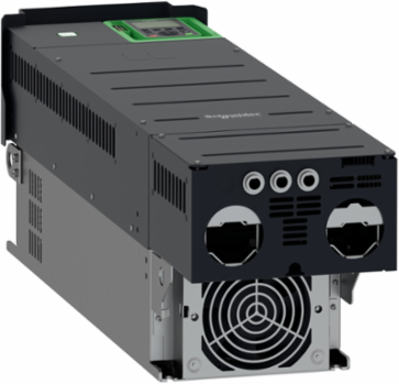

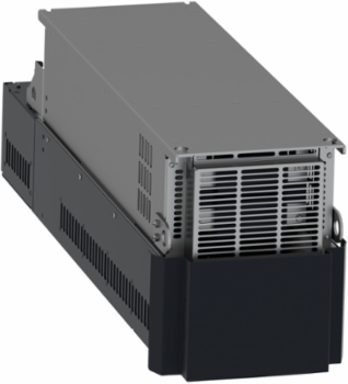

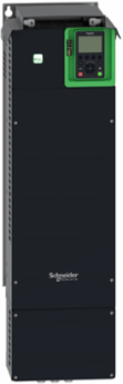

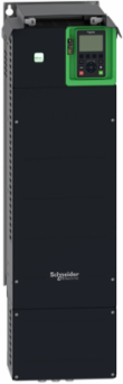

Schneider Electric ATV630D75N4 Variable Speed Drive 75kW 100hp 380-480V IP21 Wall Mounted

  • MPN: ATV630D75N4
  • PPN: SCH-ATV630D75N4
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Variable Speed Drive 75kW 100hp 380-480V IP21 Wall Mounted

    Documentation & Downloads

    Specifications

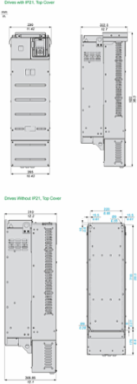

    Key Specifications

    Country of Origin
    France, Indonesia, India, United States
    Depth323 mm

    Communications & Management Attributes

    Communication Port Protocol
    Ethernet, Modbus serial, Modbus TCP

    Complementary Attributes

    Maximum Horse Power Rating
    100 hp normal duty, 75 hp heavy duty
    Maximum Thdi
    <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    Brake Chopper Integrated
    false
    Maximum Input Current Per Phase
    131.3 A
    Maximum Output Voltage
    480.0 V
    Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    Maximum Transient Current159.5 A 60 s normal duty), 159 A 60 s heavy duty)
    Maximum Associated Fuse Rating250.0 A
    Maximum Output Frequency500 kHz
    Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profile
    constant torque standard, optimized torque mode, variable torque standard
    Discrete And Process Manufacturing
    food and beverage processing pump, food and beverage processing fan, water and waste water electro submersible pump (ESP), water and waste water screw compressor, water and waste water compressor centrifugal, water and waste water fan, building - HVAC compressor centrifugal, food and beverage processing other application, mining mineral and metal fan, mining mineral and metal pump, oil and gas fan, water and waste water other application, building - HVAC screw compressor, food and beverage processing atomization, oil and gas electro submersible pump (ESP), oil and gas water injection pump, oil and gas jet fuel pump, oil and gas compressor for refinery, water and waste water centrifuge pump, water and waste water positive displacement pump, water and waste water screw pump, water and waste water lobe compressor, water and waste water conveyor, water and waste water mixer
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Insulation Resistance
    > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity Error
    AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
    Motor Power Kw
    75 kW normal duty), 55 kW heavy duty)
    Noise Level
    62.4 dB 86/188/EEC, 62.4 dB
    Permissible Temporary Current Boost
    1.1 x In 60 s normal duty), 1.5 x In 60 s heavy duty)
    Power Range
    55-100 kW 380-440 V 3 phase, 55-100 kW 480-500 V 3 phase
    Protection Type
    safe torque off drive, motor phase break drivethermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Supply
    external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
    Synchronous Motor Control Profile
    permanent magnet motor, synchronous reluctance motor
    Vibration Resistance
    1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    [Ue] Rated Operational Voltage
    380...480 V 75 kW 100 hp normal duty, 380...480 V 55 kW 75 hp heavy duty
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)
    class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    90.20177864364264, 90 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    545 kg CO2 eq., 545.0822877672492
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    4
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    false
    Base Load Current At High Overload
    106.0 A
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Design Of Frequency Changer
    U converter
    Emc Filter
    integrated 150 m IEC 61800-3 category C3
    Exchange Mode
    half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Housing Material
    sheet steel
    Marking
    CE
    Maximum Input Current Per Phase
    131.3 A
    Motor Starter Type
    variable speed drive
    Network Frequency
    50-60 Hz
    Number Of Addresses
    1-247 Modbus serial
    Number Of Hw Interfaces Serial Rs485
    1
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    3 phase
    Power Loss Static Current Independent
    32.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    50 kA
    Range Of Product
    Altivar Process ATV600
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Safety Function
    STO (safe torque off) SIL 3
    Software Version
    v6.2.5-6
    Supply Frequency
    50...60 Hz - 5...5 %
    Supporting Protocol For Bacnet
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Foundation Fieldbus
    false
    Supporting Protocol For Knx
    false
    Supporting Protocol For Modbus
    true
    Supporting Protocol For Profibus
    true
    Supporting Protocol For Profinet Io
    true
    Supporting Protocol For Safetybus P
    false
    Supporting Protocol For Suconet
    false
    Total Lifecycle Carbon Footprint
    19 835 kg CO2 eq.
    Type Of Cooling
    forced convection
    Updatability
    Upgradeable through digital modules
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 90 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime, In Kwh
    47428.983
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    922 mm
    Emc Limit Value (Complied)
    true
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    false
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    false
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type IdsEU, OM, OM8, SI
    Apparent Power93.7 kVA 480 V normal duty), 72.2 kVA 480 V heavy duty)
    Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
    Electrical Connectioncontrol removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16, motor screw terminal 95...120 mm² AWG 3/0...250 kcmil, line side screw terminal 95...120 mm² AWG 3/0...250 kcmil
    Frequency Resolutiondisplay unit 0.1 Hz, analog input 0.012/50 Hz
    Line Current131.3 A 380 V normal duty), 112.7 A 480 V normal duty), 98.9 A 380 V heavy duty), 86.9 A 480 V heavy duty)
    Local Signalling3 LEDs for local diagnostic, 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
    Motor Slip Compensationadjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    Option Cardslot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminals, slot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink
    Power Dissipation In Wnatural convection 174 W 380 V 2.5 kHz, forced convection 1369 W 380 V 2.5 kHz
    Product Destinationasynchronous motors, synchronous motors
    Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
    Switching Frequency2.5...8 kHz with derating factor, 2...8 kHz adjustable
    Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    Certificate AgencyCSA, ATEX zone 2/22, TÃœV, ATEX INERIS, UL, DNV-GL
    [Us] Rated Supply Voltage380...480 V, 380...480 V - 15...10 %
    Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]13.570009414176747, 14 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]15 kg CO2 eq., 15.416535879405677
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]19 171 kg CO2 eq., 19170.708044527328
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1411014EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1922
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At Low Overload145.0 A
    Capacity Of Dc Link5600.0 µF
    Data Format8 bits, configurable odd, even or no parity
    Device Short NameATV630
    Enclosure Mountingwall mounted
    Functionalityfull
    Isolationbetween power and control terminals
    Maximum Associated Fuse Rating250.0 A
    Method Of Accessslave Modbus TCP
    Mounting Modewall mount
    Nominal Switching Frequency2.5 kHz
    Number Of Hw Interfaces Industrial Ethernet1
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Power Loss Per Device Current Dependent1785.0 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationprocess and utilities
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Specific Applicationutility
    Supporting Protocol For Asifalse
    Supporting Protocol For Cantrue
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Interbusfalse
    Supporting Protocol For Lonfalse
    Supporting Protocol For Other Bus Systemsfalse
    Supporting Protocol For Profinet Cbatrue
    Supporting Protocol For Profisafefalse
    Supporting Protocol For Sercosfalse
    Sustainable PackagingNo
    Transmission FrameRTU
    Type Of Polarizationno impedance
    Volume Of Cooling Air295 m3/h
    With Safety Function Safe Programmable Logicfalse
    Pep CodeENVPEP1411014EN
    Pep Verification Date2025-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential, In %84
    Width Nominal290 mm
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)false
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)74.000 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating), 50-60 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1411014EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1411014EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP21, IP21IEC 61800-5-1, IP21IEC 60529
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint19834.9786562318
    Environmental DisclosureENVPEP1411014EN
    Nema Degree Of ProtectionNEMA 1
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Pep Verification Date2025-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV600
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    Discrete Output Type
    relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    Relay Output Type
    configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles
    Discrete Output Number
    0
    Maximum Output Voltage
    480.0 V
    Nominal Output Power
    75.0 kW
    Speed Drive Output Frequency
    0.1-500 Hz
    Continuous Output Current145 A 2.5 kHz normal duty, 106 A 2.5 kHz heavy duty
    Output Voltage<= power supply voltage, <= power supply voltage
    Analogue Output Number2
    Maximum Output Frequency500 kHz
    Nominal Output Current145.0 A
    Relay Output Number3

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated 150 m IEC 61800-3 category C3

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Input Compatibility
    DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Number
    8
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    Analogue Input Number3
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
