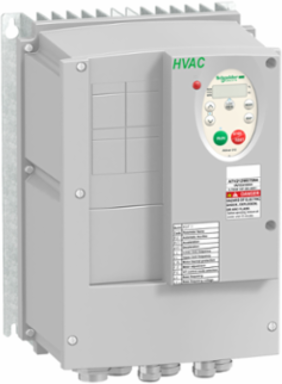

Schneider Electric ATV212WU15N4 Altivar 212 Variable Speed Drive 1.5kW 2hp 480V IP55
- MPN: ATV212WU15N4
- PPN: SCH-ATV212WU15N4
CAD
$784.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 7kg and its dimensions are, 215mm wide, 297mm high, 192mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- asynchronous motors
- Product Or Component Type
- variable speed drive
- Motor Power Kw
- 1.5 kW
- Line Current
- 2.5 A 480 V || 3.2 A 380 V
- Communication Port Protocol
- METASYS N2 || APOGEE FLN || Modbus || BACnet || LonWorks
- Product Specific Application
- pumps and fans in HVAC
- Motor Power Hp
- 2 hp
- Supply Frequency
- 50...60 Hz - 5...5 %
Range Of ProductAltivar 212
Ip Degree Of ProtectionIP55
Network Number Of Phases3 phases
[Us] Rated Supply Voltage380...480 V - 15...10 %
Supply Voltage Limits323-528 V
Emc FilterClass C2 EMC filter integrated
Device Short NameATV212
Complementary
- Prospective Line Isc
- 5 kA
- Network Frequency
- 47.5...63 Hz
- Type Of Cable
- without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
- Acceleration And Deceleration Ramps
- linear adjustable separately from 0.01 to 3200 s || automatic based on the load
- Speed Drive Output Frequency
- 0.5-200 Hz
- Transmission Frame
- RTU
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor, standard || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 2 points
- Communication Service
- monitoring inhibitable || read holding registers (03) 2 words maximum || read device identification (43) || write multiple registers (16) 2 words maximum || time out setting from 0.1 to 100 s || write single register (06)
- Insulation Resistance
- >= 1 mOhm 500 V DC for 1 minute
- Data Format
- 8 bits, 1 stop, odd even or no configurable parity
- Dielectric Strength
- 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
- Type Of Polarization
- no impedance
- Accuracy
- +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
- Maximum Transient Current
- 4 A 60 s
- Analogue Input Number
- 2
- Motor Slip Compensation
- adjustable || not available in voltage/frequency ratio motor control || automatic whatever the load
- Minimum Switching Current
- 3 mA 24 V DC configurable relay logic
- Physical Interface
- 2-wire RS 485
- Number Of Addresses
- 1-247
- Discrete Input Type
- F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
- Isolation
- electrical between power and control
- Linearity Error
- VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
- Output Voltage
- <= power supply voltage
- Width
- 215 mm
- Braking To Standstill
- by DC injection
- Protection Type
- overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit drive || against exceeding limit speed drive || line supply overvoltage and undervoltage drive || line supply undervoltage drive || against input phase loss drive || thermal protection motor || motor phase break motor || with PTC probes motor
- Analogue Input Type
- VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
Electrical ConnectionVIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
Discrete Input Logicpositive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Height297 mm
Analogue Output TypeFM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Discrete Output Typeconfigurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Torque Accuracy+/- 15 %
Maximum Switching Current5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Transient Overtorque120-120 % of nominal motor torque +/- 10 % 60 s
Response TimeFM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Apparent Power2.8 kVA 380 V
Net Weight7 kg
Frequency Resolutiondisplay unit 0.1 Hz || analog input 0.024/50 Hz
Switching Frequency6...16 kHz adjustable || 12...16 kHz with derating factor
Connector Type1 open style || 1 RJ45
Functionalitymid
Discrete Output Number2
Analogue Output Number1
Continuous Output Current3.7 A 380 V || 3.7 A 460 V
Tightening Torque1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Speed Range1-10
Local SignallingDC bus energized 1 LED red)
Specific ApplicationHVAC
Nominal Switching Frequency12 kHz
Transmission Rate9600 bps or 19200 bps
Depth192 mm
Supplyinternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Sampling Duration2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Option Cardcommunication card LonWorks
Environment
- Product Certifications
- UL || CSA || NOM 117 || C-Tick
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Marking
- CE
- Noise Level
- 48 dB 86/188/EEC
- Regulation Loop
- adjustable PI regulator
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Ip Degree Of Protection
- IP55 IEC 61800-5-1 || IP55 IEC 60529
- Operating Position
- vertical +/- 10 degree
StandardsIEC 61800-3 environments 1 category C1 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 environments 1 category C3 || IEC 61800-5-1 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 || IEC 61800-3 category C2 || EN 61800-3 category C3 || IEC 61800-3 category C3 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 1 category C2 || EN 55011 class A group 1
Ambient Air Temperature For Operation-10-40 °C without derating) || 40-50 °C with derating factor)
Environmental Characteristicclasses 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Vibration Resistance1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Pollution Degree2 IEC 61800-5-1
Ambient Air Temperature For Storage-25-70 °C
Assembly Stylewith heat sink
Operating Altitude1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111228EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI111234EN
