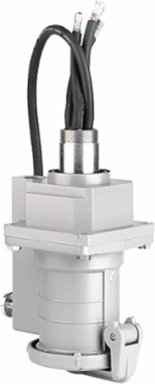

Killark VBQRA3034 Versamate Replacement Receptacle 30A 3W4P, NEMA 3, 7, 9, Pin & Sleeve, Copper-Free Aluminum
Killark VBQRA3034 Versamate Replacement Receptacle 30A 3W4P, NEMA 3, 7, 9, Pin & Sleeve, Copper-Free Aluminum
- MPN: VBQRA3034
- UPC: 783936019352
- PPN: HBL-VBQRA3034
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Versamate Replacement Receptacle 30A 3W4P
Features
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Ground Fault Options Available
- Spacious wiring room that meets NEC wire bending requirements.
- Adjustable mounting lugs
- Quick Release Cover Bolts with Triple Leads for faster removal
- Electrostatically applied polyester/epoxy finish
- Breaker Handle has provisions for locking “ON” or “OFF” with up to three Padlocks
- Killark VersaMate® VBQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks). Integral circuit breaker allows for local circuit protection (Square D and Cutler-Hammer options available).
Specifications
Specifications
- Country of Origin
- United States
- Amperage Rating
- 30 A
- Number Of Poles
- 3
- Type
- Pin & Sleeve
- Class Code
- D35
- Freight Class Code
- 06316011
- Image Actual Or Representative
- A
- Sub Class Code
- D35D260
- Receptacle Type
- Mechanically Interlocked
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936019352
Hazardous Rating(s)Class I, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Nema Rating3, 7(C, D), 9(F, G)
Number Of Wires4
ARRA CompliantContact Manufacturer
Description - InvoiceVBQRA3034 REPL RECPT
Harmonization Code8536694020
MSDS FlagNo
MaterialAluminum, Copper Free (less than 4/10 of 1%)
SeriesVBQ Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Total Units1 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
