![Wall flange, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, vertical [TAA]](https://images.province-electric.com/SCH-ACF43WF/wall-flange-i-line-busway-medium.webp)
Documentation & Downloads

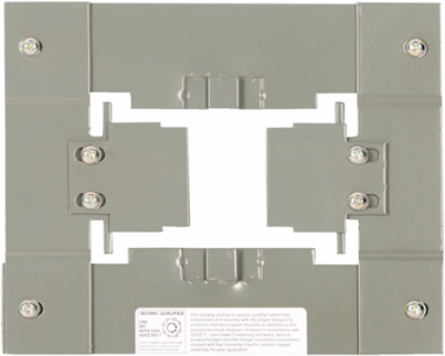

Square D ACF43WF Wall flange, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, vertical [TAA]
- MPN: ACF43WF
- UPC: 785901812487
- PPN: SCH-ACF43WF
CAD
$1006.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This wall flange is rated 800A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to terminate the bus into switchgear, motor control centers, switchboards or any rigid bus-to-bus connection. This wall flange can be used with aluminum and copper busways. This unit is for vertical mounting. This wall flange meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Compliance|TAA Compliant | BAA Compliant via COTS
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL 857CSA C22.2 No 27:1994, IEC 61439-6
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- wall flange
- Returnability
- Yes
- Pep Code
- ENVPEP1407015EN
- Width Nominal
- 10.26 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8547900040
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterOutside of Europe
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1911
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Destinationbusbar trunking 800-800 A aluminiumbusbar trunking 1000-1000 A copper
Range Of ProductI-Line
Sustainable PackagingNo
Length Total8.82 in
[Ue] Rated Operational Voltage600 V AC/DC 50/60 Hz
Package Weight(Lbs)6.430 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407015EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1407015EN
General Attributes
- Product Or Component Type
- wall flange
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
