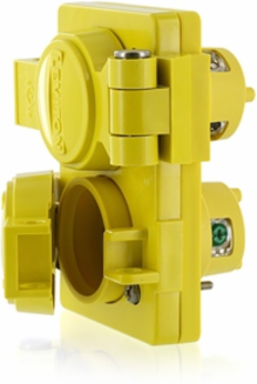

Leviton 85W49-D Wetguard Watertight Locking Duplex Outlet
Leviton 85W49-D Wetguard Watertight Locking Duplex Outlet
- MPN: 85W49-D
- UPC: 078477518793
- PPN: LEV-85W49-D
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$226.29/ EA
Description
15 Amp, 250 Volt, NEMA L6-15, 2P, 3W, Locking Duplex Outlet, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
WarrantyLimited Lifetime Warranty
Material Specifications
- Blades/Contacts, Terminal Clamps
- Electroless Nickel-coated Brass
- Cover/Lid
- Valox PBT
- Terminal Screws
- Electroless Nickel-coated Brass
- Wiring Module
- Nylon
Cover GasketSantoprene TPV
Mounting and Assembly ScrewsStainless steel, non-magnetic
Torsion Spring Mechanism (Flip Lids)Stainless Steel
Wiring Module Mounting CupValox PBT
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- #18 AWG to # 10 AWG
Screw Terminal Torque12-14 in-lbs
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Wetguard
- Device Type
- Locking Outlet
ColorYellow
Environmental Specifications
- Enclosure Rating
- NEMA 4, 4X, 12 IEC IP66
- Flammability
- Rated V-2 per UL 94 (wiring module)
EnvironmentWet
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
