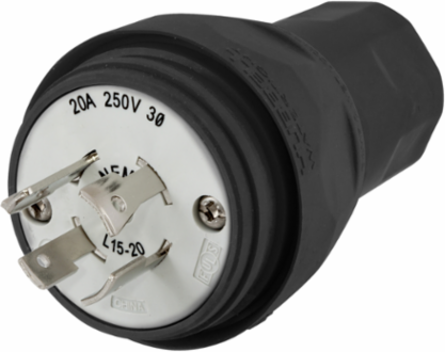

Hubbell Wiring Device-Kellems HBL26W75BK Watertight Twist-Lock Plug, 20A, 3 Phase 250V AC, 3-Pole, 4 Wire
- MPN: HBL26W75BK
- UPC: 783585456317
- PPN: HBL-HBL26W75BK
- UNSPSC: 39121402
CAD
$101.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Twist-Lock® Plug, 20A, 3 Phase 250V AC, 3-Pole, 4 Wire, Thermoplastic elastomer, NEMA L15-20P
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 2.51 in x 2.51 in x 3.96 in
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
- Amperage Rating
- 20 A
- NEMA Rating
- L15-20P
- Number of Wires
- 4-Wire
- Standard
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Voltage Rating
- 3 Phase 250 VAC
- Voltage Rating Description
- 3 Phase 250 VAC
- Engineering Drawing 1 Display Text
- HBL26W75BK AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Nema Rating
- L15-20P
- Number Of Wires
- 4-Wire
- Description - Invoice
- WATERTIGHT PLG, L15-20P,20A/250V,3PH, BK
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A116
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
Current / Amperage Rating20 A
Height3.96 in
Length2.51 in
Standards - RoHS Compliance StatusCM
ColorBlack
Number of Poles3-Pole
Size2.51 in x 2.51 in x 3.96 in
TypePlugs
Wire SizeMin. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Width2.51 in
General Literature Asset 1 Display TextFood Processing Guide
General Literature Asset 3 Display TextWatertight Wiring Devices
Number Of Poles3-Pole
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number26W75HBK
Cord Diameter0.325-0.875 in
BOX SIZE8.100x12.800x9.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585456317
NAICS Code335931A102
