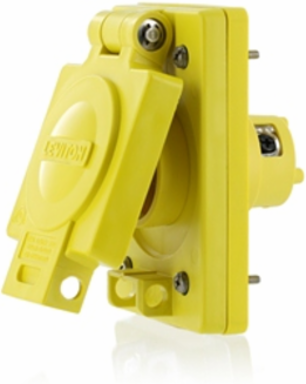

Leviton 90W07-S Wetguard Watertight Locking Outlet, 15 Amp, 125 Volt, NEMA 4X, Yellow
- MPN: 90W07-S
- UPC: 078477519462
- PPN: LEV-90W07-S
CAD
$150.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt / 10A, 250V, Non-NEMA, 3P, 3W, Straight Blade Single Outlet, Industrial Grade, Non-Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL | 498 |
| CSA | C22.2 No. 42 |
|---|---|
| NOM | 057 |
| Warranty | Limited Lifetime Warranty |
Material Specifications
| Blades/Contacts, Terminal Clamps | Electroless Nickel-coated Brass |
|---|---|
| Cover/Lid | Valox PBT |
| Terminal Screws | Electroless Nickel-coated Brass |
| Wiring Module | Nylon |
| Cover Gasket | Santoprene TPV |
|---|---|
| Mounting and Assembly Screws | Stainless steel, non-magnetic |
| Torsion Spring Mechanism (Flip Lids) | Stainless Steel |
| Wiring Module Mounting Cup | Valox PBT |
Mechanical Specifications
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | #18 AWG to # 10 AWG |
| Screw Terminal Torque | 12-14 in-lbs |
|---|
Product Features
| Brand | Wetguard |
|---|---|
| Device Type | Straight Blade Outlet |
| Color | Yellow |
|---|
Environmental Specifications
| Enclosure Rating | NEMA 4, 4X, 12 IEC IP66 |
|---|---|
| Flammability | Rated V-2 per UL 94 (wiring module) |
| Environment | Wet |
|---|---|
| Operating Temperature | -40°C to 60°C |
Electrical Specifications
| Amperage | 15/10 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 3 |
| Voltage | 125/250 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Non-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
