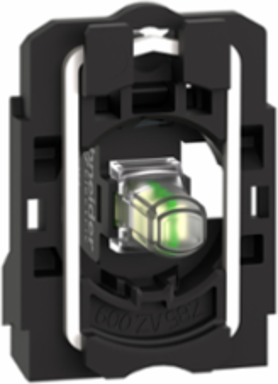

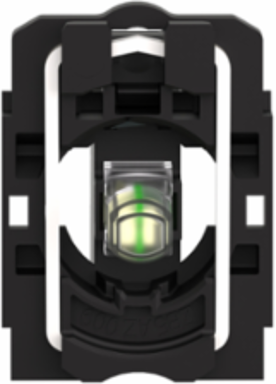

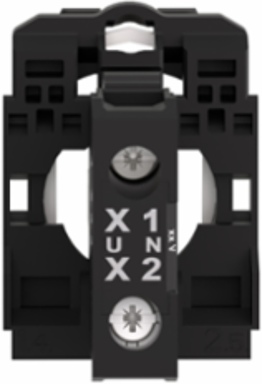

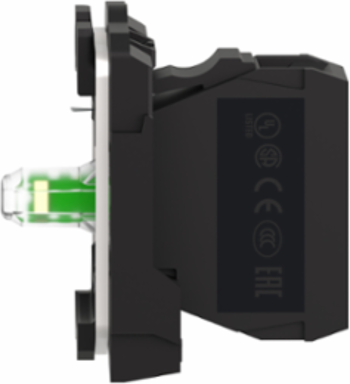

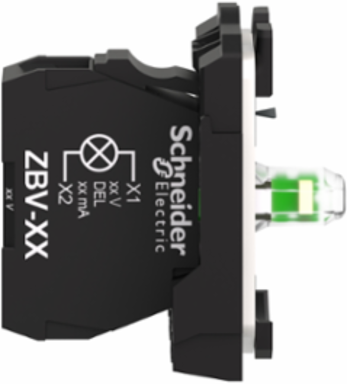

Schneider Electric ZB5AVB1 Harmony XB5 Light Block Assembly, 24V AC/DC, Plastic, 42mm Height
Schneider Electric ZB5AVB1 Harmony XB5 Light Block Assembly, 24V AC/DC, Plastic, 42mm Height
- MPN: ZB5AVB1
- PPN: SCH-ZB5AVB1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$58.09/ EA
Description
This Harmony XB5, light block with body/fixing collar operates with an integral LED. It has a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Specifications
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || GL || BV || CSA || DNV || UL listed
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsJIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Complementary
- Terminals Description Iso N°1
- (X1-X2)PL
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Current Consumption
- 18 mA
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Cad Overall Width
- 30 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Net Weight0.022 kg
Cad Overall Height42 mm
Device Presentationbasic sub-assemblies
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
Tightening Torque0.8-1.2 N.m IEC 60947-1
Cad Overall Depth32 mm
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- complete body/light block assembly
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Light Source Colour
- white
- Bulb Base
- integral LED
Light Sourceuniversal LED
Fixing Collar Materialplastic
Sale Per Indivisible Quantity1
Device Short NameZB5
