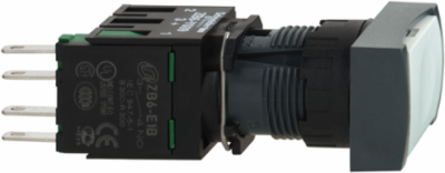

Schneider Electric XB6DA11B Harmony XB6 Rectangular Push Button 16mm Spring Return 1NO, IP65
- MPN: XB6DA11B
- PPN: SCH-XB6DA11B
CAD
$30.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This push button from Schneider Electric is designed to enhance your automation and control systems with its reliable and robust construction. The Harmony XB6 series features a 16mm rectangular shape that fits seamlessly into various panel configurations, and it operates with a dependable spring return mechanism for 1 normally open (1NO) functionality. With an IP65 rating, it offers excellent protection against dust and water, making it suitable for challenging environments where durability is essential. This push button is an ideal choice for those seeking a reliable pilot device that combines efficiency and resilience.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15, B300; 1.5 A 240 V AC-15, B300; 0.1 A 250 V DC-13, R300; 0.22 A 125 V DC-13, R300 EN/IEC 60947-5-1
- Operating Travel
- 1 mm NO changing electrical state, 3.5 mm total travel
- Electrical Durability
- 1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V EN/IEC 60947-5-1 appendix C
- Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Mounting Diameter
- 16 mm (0.63 in)
- Net Weight
- 0.019 kg
- Contacts Material
- Silver alloy (Ag/Ni)
- Shape
- Rectangular
- Operator Profile
- White flush, unmarked
- Short-circuit Protection
- 6 A cartridge fuse gG
- IP Degree of Protection
- IP65 IEC 60529
- Standards
- EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, UL 508, CSA C22.2 No 14, JIS C 4520, JIS C 852
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Contact Terminals Description
- ISO No 1 (13-14) NO
Operating Force3.5 N NO changing electrical state
Mechanical Durability2,000,000 cycles
Rated Insulation Voltage250 V EN/IEC 60947-1
Contact OperationSlow-break
Dimensions (Width x Height x Depth)24 mm x 18 mm x 57 mm (0.94 in x 0.71 in x 2.24 in)
Material - BezelPlastic
TerminalsFaston connectors 2.8 x 0.5 mm
Type of OperatorSpring return
Operating PositionAny position
Electrical Shock Protection ClassClass II IEC 61140
NEMA Degree of ProtectionNEMA 13, 4, 4X UL 50, CSA C22.2 No 94
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Country of OriginMexico
