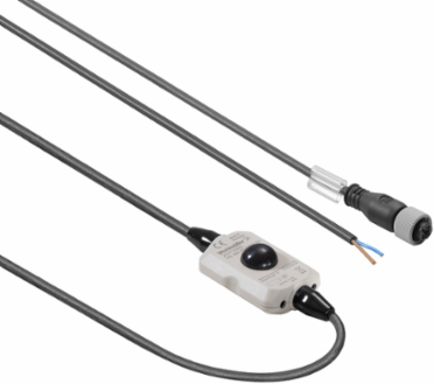

Weidmuller 2537710000 WIL-BM-JP-M12-3.0U
- MPN: 2537710000
- PPN: WDM-2537710000
CAD
$251.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
WIL-BM-JP-M12-3.0U
Specifications
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|

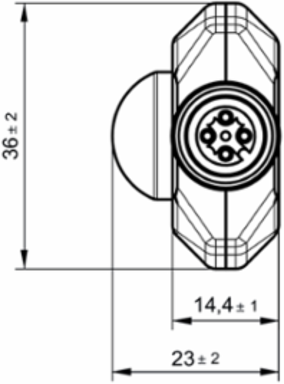

Dimensions And Weights
| Width | 51 mm |
|---|---|
| Height | 23 mm |
| Depth | 36 mm |
| Net weight | 40 g |
| Width (inches) | 2.008 inch |
|---|---|
| Height (inches) | 0.906 inch |
| Depth (inches) | 1.417 inch |
Connection Data
| Coding | A |
|---|---|
| Tightening torque | 0.8 Nm |
| Connection thread | M12 |
|---|---|
| Wiring | PIN 4: + (black), PIN 3: - (blue) |
General Technical Data
| Protection degree | IP20 |
|---|
Cable Technical Specifications
| Cable Material | PUR |
|---|---|
| Cable length | 3 m |
| Sheathing colour | black |
|---|
Electric Data
| Rated voltage (text) | 24 V DC |
|---|
| Rated current | < 3.0 A |
|---|
Classifications
| ETIM 6.0 | EC002955 |
|---|
| ETIM 7.0 | EC002955 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Operating temperature | -20 - 60°C |
| Operating temperature, min. | -20 °C |
|---|
