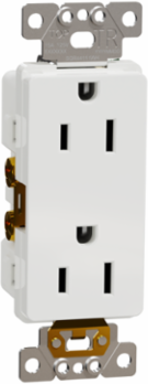

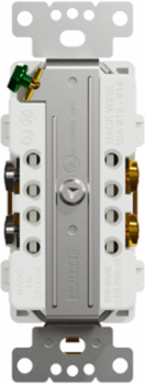

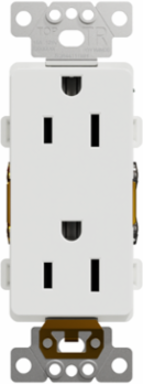

Square D SQR44111WH X Series 15A 125V Tamper Resistant Duplex Receptacle, 1 Gang, White
- MPN: SQR44111WH
- UPC: 785901542681
- PPN: SCH-SQR44111WH
CAD
$9.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric X Series Tamper Resistant Duplex Receptacle offers a reliable and safe power solution designed to enhance wire management and prevent accidental electrical mishaps. Capable of handling 15A at 125V, this receptacle is tailored for both residential and commercial applications, ensuring compliance with safety standards thanks to its tamper-resistant design. With its sleek white finish, this single-gang receptacle seamlessly integrates into any environment, providing an effective and aesthetically pleasing outlet for various electronic devices. Elevate your electrical infrastructure with this essential component that combines functionality with enhanced safety features.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V
- Network Frequency
- 60 Hz
- Socket Number
- 2
- Outlet Standard
- NEMA 5-15R
- Mounting Mode
- by screws
- Height
- 103 mm (4.06 in)
- Material
- Plastic (strap), Metal (fixing frame)
- Toxic Heavy Metal Free
- Yes
- Product Certifications
- cULus
- China RoHS Compliance
- Pro-active declaration (out of China RoHS legal scope)
- REACH Compliance
- Free of SVHC above threshold
- Socket Additional Information
- tamper resistant
- Color
- white
- Range
- Square D X Series
- Environmental Disclosure
- ENVPEP2011022_V1
Amperage15 A
Number of Gangs1 gang
Outlet Poles Configuration2P + E
Device Mountingflush
Width39 mm (1.54 in)
Depth31 mm (1.22 in)
Surface Finishmatt
Mercury FreeYes
StandardsUL 498, NEMA 5-15R
RoHS ComplianceEU RoHS Compliant
Earth Circuitself earthing
Product Or Component Typesocket-outlet
Device Applicationpower supply
Circularity ProfileENVEOLI2011022_V1
Body Typedecorator
