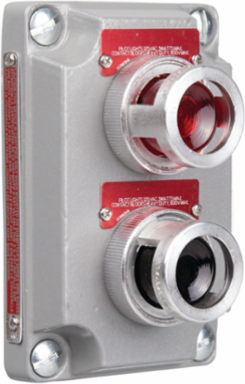

Killark XCS-0B30RLD-GLD Aluminum Double LED Pilot Light Cover 7.625 Inch x 5.75 Inch, Red-Green
Killark XCS-0B30RLD-GLD Aluminum Double LED Pilot Light Cover 7.625 Inch x 5.75 Inch, Red-Green
- MPN: XCS-0B30RLD-GLD
- UPC: 783936960456
- PPN: HBL-XCS-0B30RLD-GLD
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$984.49/ EA
Description
XCS Series - Aluminum Double 120V LED Pilot Light Cover With Device -Red Lens And Green Lens With Nameplates To Be Specified
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- SWB
- Depth
- 2-3/32
- Each - Width
- 5.750 in
- Height
- 4 in
- Actuator
- Pilot Light
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
- Size
- 7.625 in x 5.75 in x 4 in
- Type
- Aluminum Cover With Two LED Pilot Lights
- Frequency Rating
- 50/60 Hz
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.94
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Country of OriginUS
Dimensions7.625 in x 5.75 in x 4 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length7.625 in
Amperage Rating0.01 A
ColorRed-Green
Special FeaturesKillark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Width5.75 in
ARRA CompliantContact Manufacturer
Description - InvoiceDOUBLE PILOT LIGHT CVR ASSY RED GRN LED
Harmonization Code8531809051
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
SeriesXCS Series
BOX SIZE5.500x6.880x3.750 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936960456
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
