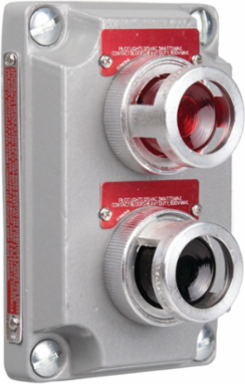

Killark XCS-0B30RL-GL Aluminum Pilot Light Cover, 7.625 Inch x 5.75 Inch x 4 Inch, Dual Lights Red-Green
- MPN: XCS-0B30RL-GL
- UPC: 783936890340
- PPN: HBL-XCS-0B30RL-GL
- UNSPSC: 39122216
CAD
$918.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series - Aluminum Double 120V Pilot Light Cover With Device - Red Lens And Green Lens With Nameplates To Be Specified
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Size
- 7.625 in x 5.75 in x 4 in
- ARRA Compliant
- Contact Manufacturer
- Back Box Type
- SWB
- Depth
- 2-3/32 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 7.625 in
- Actuator
- Pilot Light
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Type
- Aluminum Cover With Two Pilot Lights
- Description - Invoice
- PILOT LTG COV. (1)RED (1)GREEN
- Harmonization Code
- 8531809999
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.33
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936890340
- NAICS Code
- 3359326103
Special FeaturesKillark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Country of OriginUnited States
ColorRed-Green
Dimensions7.625 in x 5.75 in x 4 in
Height4 in
Width5.75 in
Amperage Rating0.25 A
Frequency Rating50/60 Hz
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
SeriesXCS Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
