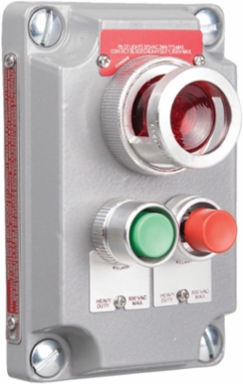

Killark XCS-0A15 Control Station Cover with 7.875 Inch x 5.875 Inch x 4 Inch Aluminum Body and Pilot Light
- MPN: XCS-0A15
- UPC: 783936890043
- PPN: HBL-XCS-0A15
- UNSPSC: 39122216
CAD
$1105.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series- Cover with Device - Momentary Contact Two Mini Red-Green Push Buttons And Red Pilot Light
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Number of Poles
- 2
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Country of Origin
- United States
- Color
- Green-Red P.B., Red Light
- Dimensions
- 7.875 in x 5.875 in x 4 in
- Height
- 4 in
- Width
- 5.875 in
- Actuator
- Momentary Pushbutton
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Frequency Rating
- 50/60 Hz
- Operating Cycles
- 10,000 operations
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Series
- XCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Size7.875 in x 5.875 in x 4 in
ARRA CompliantContact Manufacturer
Back Box TypeSWB
Depth2-3/32 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length7.875 in
ActionSP (per circuit)
Amperage Rating10 A
Contact RatingNEMA A600 - 7200 VA (make), 720 VA (break), 10A cont. @ 600V AC (thermal); NEMA Q300 - 69 VA (make & break), 2.5A cont. @ 250V DC (thermal).
Number Of Poles2
TypeAluminum Cover With Pilot Light And Two Mini Push Buttons
Description - InvoiceCLI RED-GRNPB&110V RD PL CV(CS
Harmonization Code8536509999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.37
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936890043
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
