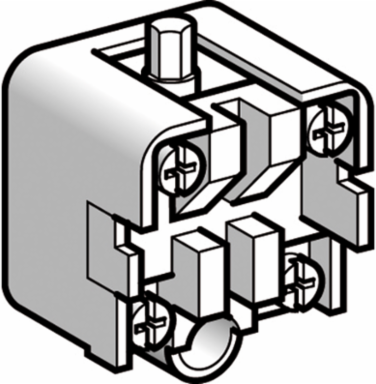

Telemecanique Sensors XCKZ01 Limit switch contact block, Limit switches XC Standard, XCKZ, 1 C/O snap action, silver plated

MPN: XCKZ01
PPN: TES-XCKZ01
UNSPSC: 39121522

$168.27

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch contact block, Limit switches XC Standard, XCKZ, 1 C/O snap action, silver plated

Documentation & Downloads

Specifications

Key Specifications

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch contact block
Device Short Name	XCKZ

Contacts Type And Composition	1 C/O
Contact Operation	snap action
Associated Body	ZC2JC1 \|\| ZC2JC15 \|\| ZC2JC16
Number Of Poles	1

Complementary

Electrical Connection	screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Electrical Durability	5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	without
Contacts Insulation Form	Za
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A \|\| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Maximum Resistance Across Terminals	25 mOhm IEC 60255-7 category 3

[Ui] Rated Insulation Voltage	500 VIEC 60947-5-1 \|\| 300 VCSA C22.2 No 14
Short-Circuit Protection	10 A cartridge fuse gG
Minimum Actuation Speed	0.01 mm/s
Contacts Material	silver plated contacts
Product Compatibility	XC2J
