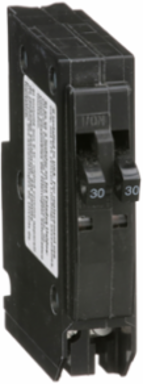

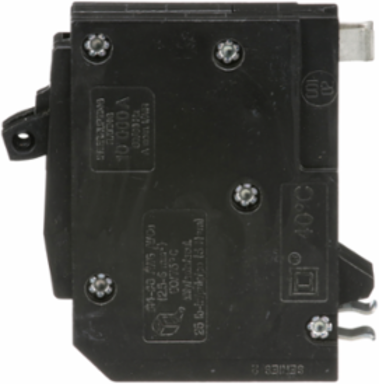

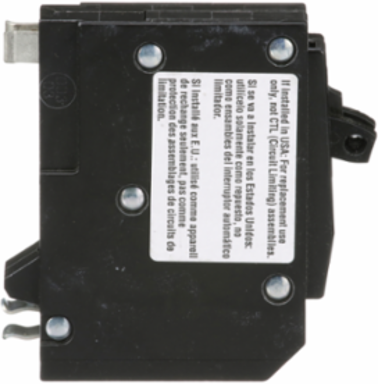

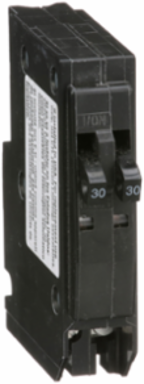

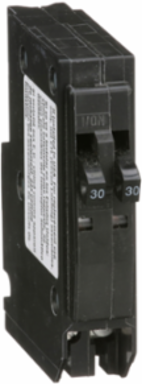

Square D QO3030 Tandem mini circuit breaker, QO, 2 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount

Tandem mini circuit breaker, QO, 2 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
Tandem mini circuit breaker, QO, 2 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
Tandem mini circuit breaker, QO, 2 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
Tandem mini circuit breaker, QO, 2 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
Tandem mini circuit breaker, QO, 2 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
  • MPN: QO3030
  • UPC: 785901400967
  • PPN: SCH-QO3030

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$64.46/ EA

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 30A for 120/240VAC This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Complementary

Height
82 mm
Number Of Spaces Required
1
Breaking Capacity
10 kA 120/240 V AC 50/60 Hz
Width
19 mm
Tightening Torque2.8-2.8 N.m
Net Weight0.154 kg
Awg GaugeAWG 14...AWG 8 copper or aluminum
Depth74 mm

Offer Sustainability

Rohs Exemption Information
Yes
Sustainable Offer Status
Green Premium product
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity Profile
N/A
Halogen Content Performance
Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions

Environment

Product Certifications
UL listed || CSA
Ambient Air Temperature For Operation40 °C

Specifications

Circuit Breaker Type
tandem
Product Or Component Type
miniature circuit-breaker
Mounting Mode
plug-in
Electrical Connection
box lugs
[Ue] Rated Operational Voltage
120/240 V AC
Range Of ProductQO
Circuit Breaker ApplicationHACR rated
Poles Description1P
[In] Rated Current30 A
