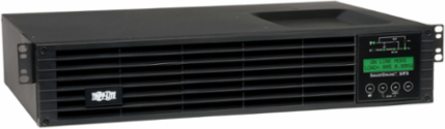

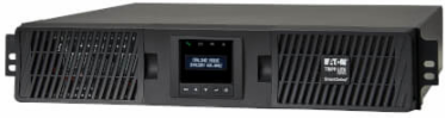

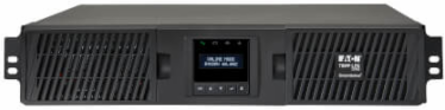

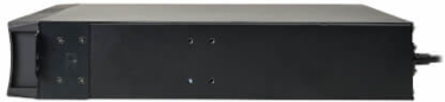

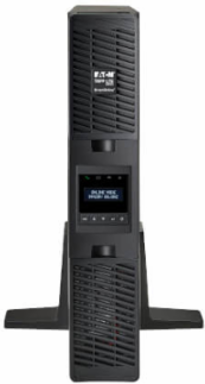

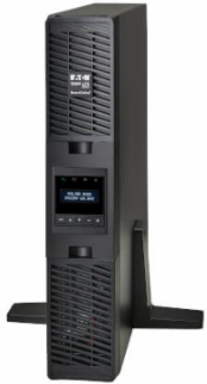

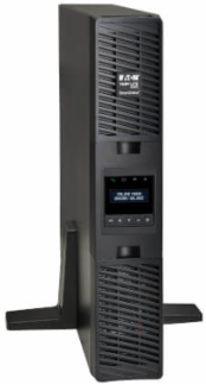

Tripp Lite SU1000RTXLCD2UN 120V 1000VA Double-Conversion UPS with 6 Outlets, Extended Runtime, 2U Rackmount
- MPN: SU1000RTXLCD2UN
- UPC: 037332253545
- PPN: TRP-SU1000RTXLCD2UN
CAD
$3026.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
120V 1000VA Double-Conversion UPS with 6 Outlets, Extended Runtime, 2U Rackmount
Features
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
- Automatically Turns Back On After Power Is Restored

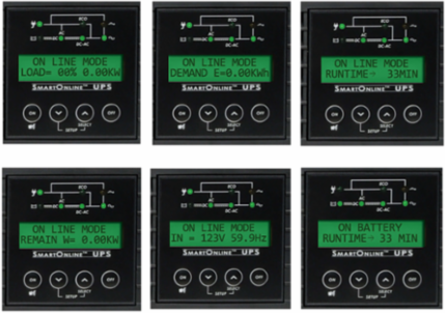

- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
- Versatile Installation Options
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity (VA)
- 1000 VA
- UPS Type
- On-Line Double-Conversion
- Input Voltage
- 100-127 V AC
- Input Circuit Breakers
- 15 A
- Frequency Compatibility
- 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Output Voltage Regulation (Battery Mode)
- +/- 3%

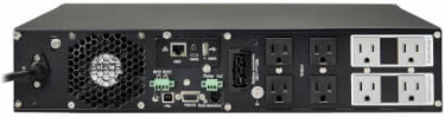

- Output Receptacles
- (6) 5-15R
- Battery Runtime at Full Load
- 4.8 min (900 W)
- External Battery Compatibility
- Supports external packs BP24V15RT2U, BP24V28-2U, BP24V70-3U, BP24V36-2US
- Battery Replacement
- Hot-swappable, user replaceable batteries
- Voltage Regulation Description
- Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages
- Undervoltage Correction
- Corrects undervoltages to 100 V at full load (90 V at 100 V nominal)
- Crest Factor
- 3:1
- Rack Height
- 2U

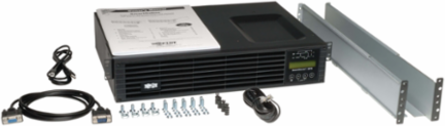

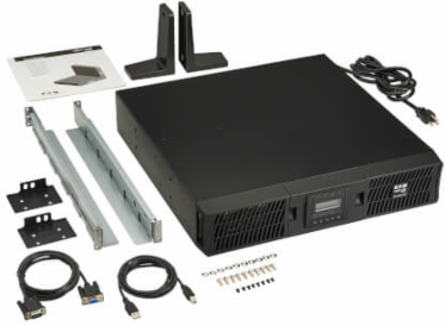

- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Primary Form Factor
- Rackmount
- UPS Power Module Dimensions (hwd, in.)
- 3.5 x 17.5 x 12.5 in
- Primary UPS Width (mm)
- 445 mm
- Weight
- 29 lbs (13.15 kg)
- UPS Power Module Weight (kg)
- 13.15 kg
- Storage Temperature Range
- +5 to +122 °F / -15 to +50 °C
- Operating Elevation
- 0 - 3000 m (0 - 10,000 ft)
- Cooling Method
- Fan cooled
- Surge Suppression
- 570 Joules
- EMI / RFI AC Noise Suppression
- Yes
- Brand
- Tripp Lite
Output Watt Capacity (Watts)900 W
Voltage120 V
Input Current8.6 A maximum
Input PhaseSingle-Phase
Power Factor0.9
Output Voltage Regulation (Economy Line Mode)+/- 10%
Load Management ReceptaclesTwo switchable single-outlet 5-15R load banks
Output WaveformPure Sine wave
Battery Runtime at Half Load14 min (450 W)
Battery Recharge TimeLess than 3 hours to 90%
Battery AccessFront panel battery access
Overvoltage CorrectionCorrects up to 150 V (0-100% load)
Severe Undervoltage CorrectionCorrects brownouts to 70 V (70% load) and 55 V (33% load)
Transfer TimeZero (0 ms) in double-conversion mode; 4 ms economy mode
Form Factor2U Rackmount
Mounting4-post 19 inch rackmount included; optional tower, 2-post and wall mount kits
Dimensions (H x W x D)3.5 x 17.5 x 12.5 in (89 x 445 x 318 mm)
Primary UPS Height (mm)89 mm
Primary UPS Depth (mm)318 mm
UPS Power Module Weight (lbs.)29 lbs
Operating Temperature Range+32 to +104 °F / 0 to +40 °C
Relative Humidity0 to 95%, non-condensing
MaterialSteel
UPS CertificationsENERGY STAR Qualified; FCC Part 15 Category B; RoHS; CSA; NOM; UL1778
Dataline Suppression1 line TEL/DSL, 10/100Base T Ethernet
ColorBlack
UPC Code037332253545
