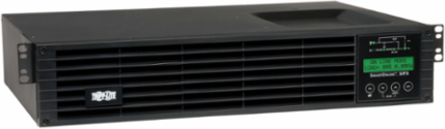

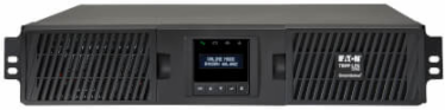

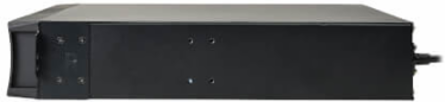

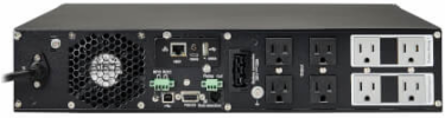

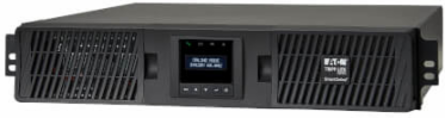

Tripp Lite SU750RTXLCD2UN 750VA Double-Conversion UPS, 675W, 6 Outlets, 2U Rackmount
- MPN: SU750RTXLCD2UN
- UPC: 037332253538
- PPN: TRP-SU750RTXLCD2UN
CAD
$2605.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
750VA Double-Conversion UPS, 675W, 6 Outlets, 2U Rackmount

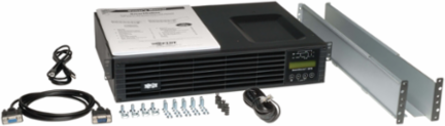

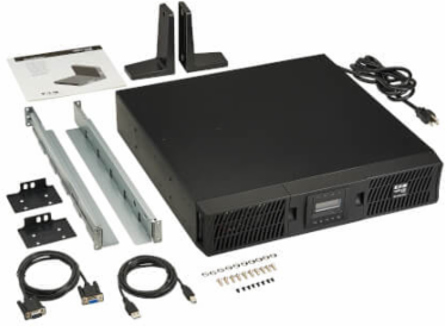

Features
- WEBCARDLXE network management card
- USB cable
- DB9 cable
- Rack-mounting hardware
- Tower support stands
- Safety instructions
- Quick start guide
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity
- 750 VA
- Power Factor
- 0.9
- Frequency Compatibility
- 50/60 Hz; supports 50 to 60 Hz and 60 to 50 Hz conversion
- Voltage Regulation (Economy Mode)
- +/- 10%
- Output Waveform (AC Mode)
- Pure Sine wave
- Input Rated Current (Maximum Load)
- 8 A
- Input Circuit Breakers
- 15 A
- Input Phase
- Single-Phase
- Half Load Runtime
- 13.9 min (338 W)
- Voltage Regulation Description
- Online double-conversion, maintains +/- 2% output voltage regulation
- Undervoltage Correction
- Corrects undervoltages to 100 V at full load (90 V nominal)
- Surge Suppression Joule Rating
- 570 Joules
- Operating Temperature Range
- 0 to 40 C (32 to 104 F)
- Battery Mode BTU per Hour (Full Load)
- 439 BTU/hr
- Operating Elevation
- 0 to 3000 m (0 to 10,000 ft)
- Transfer Time
- Zero ms (double-conversion mode), 4 ms (economy mode)
- Individually Controllable Load Banks
- Yes
- Expandable Battery Runtime
- Yes, via optional external battery packs
- Battery Access
- Front panel access
- Front Panel Interface

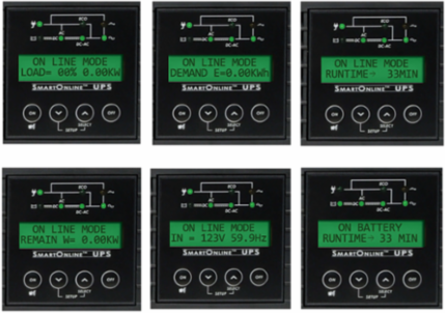

- LCD display with configuration and status
- LED Indicators
- 7 front panel LEDs for line power, battery mode, inverter mode, bypass mode, ECO mode
- Weight
- 27.6 lbs (12.52 kg)
- Mounting

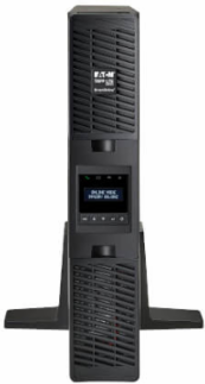

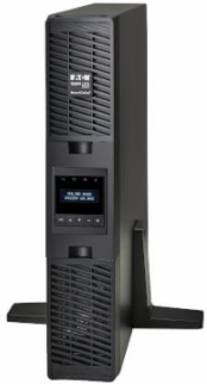

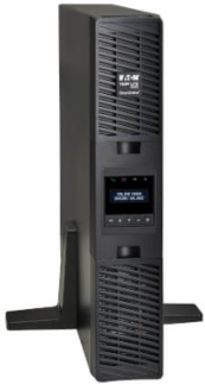

- 2U rackmount; optional tower, wallmount, 2-post and 4-post rackmount
- Relative Humidity
- 0 to 95% non-condensing
- Communications Ports
- USB, DB9 serial, EPO, network card slot
- Brand
- Tripp Lite
Output Watt Capacity675 W
Nominal Voltage120 V
Voltage Regulation (Line Mode)+/- 2%
Voltage Regulation (Battery Mode)+/- 3%
Output Waveform (Battery Mode)Pure Sine wave
Input Nominal Voltages Supported100V, 110V, 115V, 120V, 127V AC
Recommended Electrical Service15A 120V
Full Load Runtime4.3 min (675 W)
DC System Voltage24 VDC
Overvoltage CorrectionCorrects overvoltages to 150 V (0-100% load)
Severe Undervoltage CorrectionCorrects brownouts to 70 V (70% load) & 55 V (33% load)
AC Noise SuppressionEMI/RFI
AC Mode BTU per Hour (Full Load)256 BTU/hr
Economy Mode Efficiency (100% Load)93%
Cold Start SupportYes
Output Receptacles(6) 5-15R
Input Cord Length10 ft
Battery Recharge Rate< 3 hours recharge to 90%
Battery ReplacementHot-swappable, user replaceable
Alarm TypesPower-fail, low-battery, overload, UPS fault, remote shutdown
Dimensions (H x W x D)3.5 x 17.5 x 12.5 in
Cooling MethodFan
Storage Temperature Range-15 to 50 C (5 to 122 F)
Audible Noise45 dBA at 1 m front side
CertificationsUL1778, CSA, FCC Part 15 Category B, RoHS
