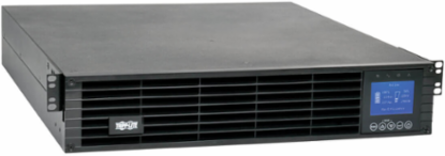

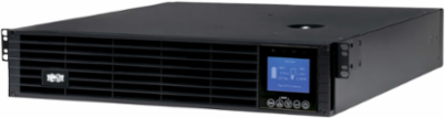

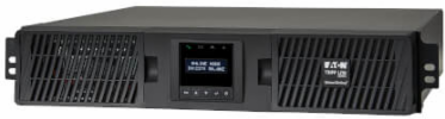

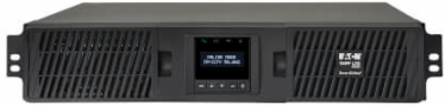

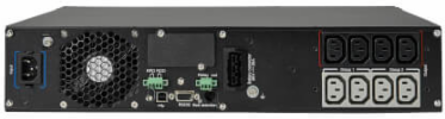

Tripp Lite SUINT1000LCD2U 1000VA 900W Double-Conversion UPS, 6 Outlets, Rackmount 2U
Tripp Lite SUINT1000LCD2U 1000VA 900W Double-Conversion UPS, 6 Outlets, Rackmount 2U
- MPN: SUINT1000LCD2U
- UPC: 037332185648
- PPN: TRP-SUINT1000LCD2U
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2234.49/ EA
Features
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Optional WEBCARDLX network interface required to use Auto Probe feature
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Set Power Strategies to Reflect Your Protection Priorities
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- Automatic Bypass Maintains Utility Output During Fault Conditions
- ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
- Automatically Turns Back On After Power Is Restored
- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Optional WEBCARDLX Network Interface Offers 24/7 Access
- Versatile Installation Options
Specifications
Surge / Noise Suppression
- UPS Dataline Suppression Details
- Single line dialup / network dataline protection included
- AC Suppression Joule Rating
- 627
EMI / RFI AC Noise SuppressionYes
AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 4.7 min. (900w)
- Expandable Battery Runtime
- Supports extended runtime with optional external battery packs
- DC System Voltage (VDC)
- 24
- Internal UPS Replacement Battery Cartridge
- RBC24S
- Battery Replacement Description
- Hot-swappable, replaceable batteries
Half Load Runtime (min.)12.3 min. (450w)
External Battery Pack CompatibilityBP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V36-2US (multi-pack compatible); BP24V70-3U (multi-pack compatible)
Battery Recharge Rate (Included Batteries)Less than 4.1 hours from 10% to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- CE; ENERGY STAR Qualified; Tested to CSA (Canada); Tested to EAC (Belarus, Kazakhstan, Russia); Tested to SASO (Saudi Arabia); Tested to UL1778 (USA)
UPS Certification DetailsIEC62040-1:2008+A1; UL1778 5th; Meets EMI approvals EN62040-2 (Cat C2), FCC Class A
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth with External Battery Pack (cm)
- 47
- Minimum Required Rack Depth without External Battery Pack (cm)
- 45
- Optional Mounting Accessory Notes

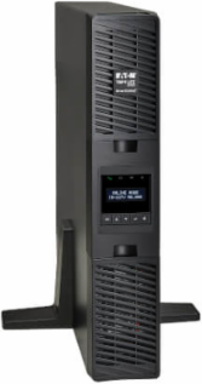

- Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
- Primary UPS Depth (mm)
- 397
- Primary UPS Width (mm)
- 438
- Shipping Dimensions (hwd / in.)
- 9.60 x 19.80 x 23.50
- UPS Housing Material
- Metal
- UPS Power Module Weight (kg)
- 12.70

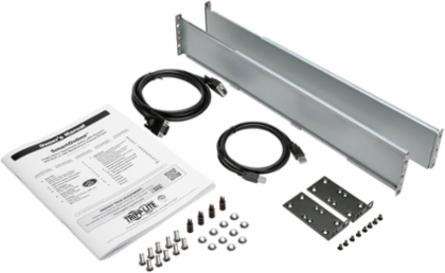

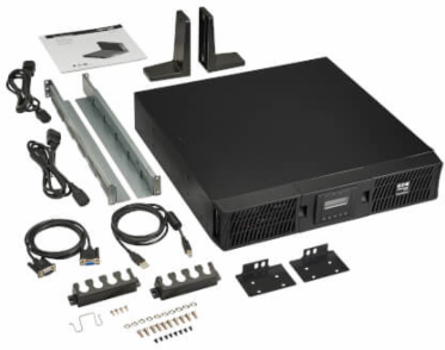

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth with External Battery Pack (in.)18.63
Minimum Required Rack Depth without External Battery Pack (in.)17.88
Primary Form FactorRackmount
Primary UPS Height (mm)88
Rack Height2U
Shipping Weight (lbs.)44.00
UPS Power Module Dimensions (hwd, in.)3.46 x 17.24 x 15.63
UPS Power Module Weight (lbs.)28
User Interface, Alerts & Controls

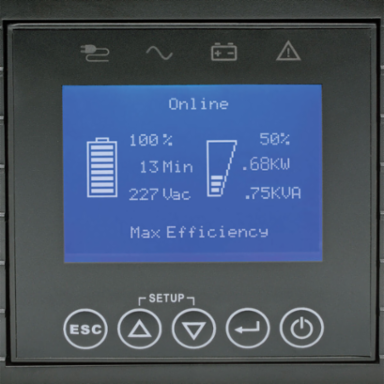

- Front Panel LCD Display
- Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information; LCD interface also enables a variety of advanced UPS setup and configuration options
- Alarm Cancel Operation
- Power-fail alarm can be silenced by following on-screen prompts
- LED Indicators
- 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
Switches5 front panel switches: On/Off, Up, Down and Escape
Audible AlarmAudible alarm indicates power failure, low battery, overload and fault
Voltage Regulation
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
Overvoltage Correction2% output voltage regulation during overvoltages to 288V
Input
- Rated input current (Maximum Load)
- 4.99A
- UPS Input Connection Type
- C14 inlet
Nominal Input Voltage(s) Supported200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1000
- Output Watt Capacity (Watts)
- 900
- Power Factor
- 0,9
- Nominal Voltage Details
- Nominal output voltage is user configured on first power-on
- Frequency Compatibility Details
- Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion operation
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Included Output Power Cables
- Includes 2 C13 to C14 power cables
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Output Capacity Details
- DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 630 watts for 208/220/230/240V output voltages; Max output is 720W (504W in Frequency Conversion mode) at 200V output voltage OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
- Output Receptacles
- (6) C13
Output kVA Capacity (kVA)1
Output kW Capacity (kW)0.9
Crest Factor3:1
Frequency Compatibility50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Output Voltage Regulation (Line Mode)+/- 2%
Output Voltage Regulation (Battery Mode)+/- 2%
Load Management ReceptaclesTwo switchable 2-outlet load banks
Output AC Waveform (Battery Mode)Pure Sine wave
Nominal Output Voltage(s) Supported200V; 208V; 220V; 230V; 240V
Individually Controllable Load BanksYes
Communications
- PowerAlert Software
- Available for download at www.tripplite.com
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB and DB9 cabling included
Communications InterfaceUSB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
- Relative Humidity
- 5 to 95%, non-condensing
- AC Economy Mode BTU / Hr. (Full Load)
- 128
- AC Mode Efficiency Rating (100% Load)
- >93%
- Audible Noise
- <45dB at front side 1M
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
AC Mode BTU / Hr. (Full Load)245
Battery Mode BTU / Hr. (Full Load)500
AC Economy Mode Efficiency Rating (100% Load)>96%
Operating Elevation (m)Up to 3000m
Overview
- UPC Code
- 037332185648
UPS TypeOn-Line
Special Features
- Grounding Lug
- Back panel grounding lug included
- High Availability UPS Features
- Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Green Energy-Saving FeaturesHigh efficiency economy mode operation; Individually controllable load banks
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- No transfer time (0 ms.) in online, double-conversion mode; 3-9 ms. transfer time during economy mode operation
- High Voltage Transfer to Battery Power (Setpoint)
- 288V
Low Voltage Transfer to Battery Power (Setpoint)160V (100% load), 140V (66% load), 120V (33% load)
