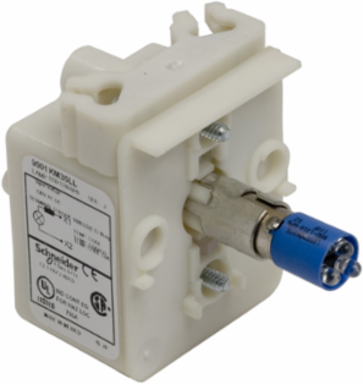

Square D 9001KM38LL 30mm Push Button, Types K, SK or KX, light module, blue LED lamp, 120 VAC/VDC
Square D 9001KM38LL 30mm Push Button, Types K, SK or KX, light module, blue LED lamp, 120 VAC/VDC
- MPN: 9001KM38LL
- UPC: 785901640301
- PPN: SCH-9001KM38LL
- UNSPSC: 39121534
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$147.22/ EA
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 120 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a blue LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear lens cap. These light modules are UL Listed and CSA certified.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA, NEMA
StandardsUL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C 4520, JIS C 852
Important Information Attributes
- Product Or Component Type
- light module, light block
- Us Rated Supply Voltage2
- 120 V AC 50...60 Hz, 120 V DC
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Device Short Name
- 9001K
- Light Block Supply
- direct via integral resistance 1.4 VA
- Package Weight Lbs
- 68.039 g
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Stocking Flag
- Y
- Pep Code
- ENVPEP2503027EN
Range Of ProductHarmony 9001K, Harmony 9001SK
Us Rated Supply Voltage5120 V AC 50...60 Hz, 120 V DC
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bulb BaseBA 9s
Electrical Shock Protection Classclass II conforming to IEC 61140
Light SourceLED (bulb included)
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingYes
Medium Desc30mm Push Button, Types K, SK or KX, light module, blue LED lamp, 120 VAC/VDC
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Ambient Air Temperature For Storage
- -40-70 °C, -40-158 °F
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- IP Degree Of Protection
- IP10 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Operation-25-70 °C, -13-158 °F
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- light module, light block
Range Of ProductHarmony 9001K, Harmony 9001SK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
