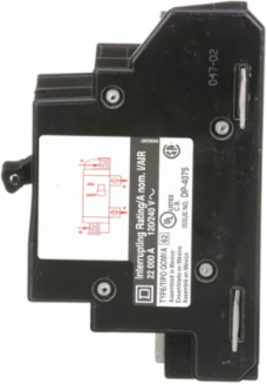

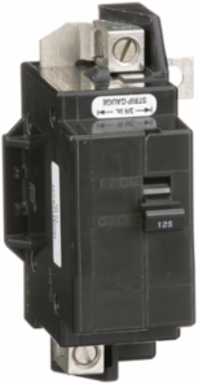

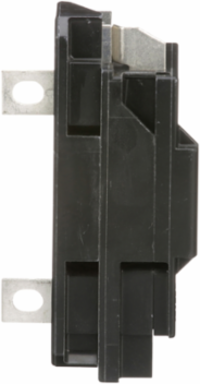

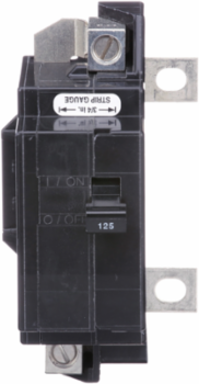

Square D QOM125VH QO Main Breaker 125A 2 Pole 120/240VAC 22kA Bolt-On
Square D QOM125VH QO Main Breaker 125A 2 Pole 120/240VAC 22kA Bolt-On
- MPN: QOM125VH
- UPC: 785901004042
- PPN: SCH-QOM125VH
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$233.58/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Amperage
- 125 A
- Interrupting Capacity
- 22 kA
- Mounting Type
- Bolt-On
- Width
- 3.46 in
- Phase
- 1 phase
- Manufacturer
- Schneider Electric
- Compliance
- UL Listed, CSA, RoHS Compliant with Exemptions
Voltage120/240 VAC
Poles2
Length5.08 in
Depth5 in
MaterialMercury Free
Country of OriginMexico
Warranty Period18 months
Downloads
