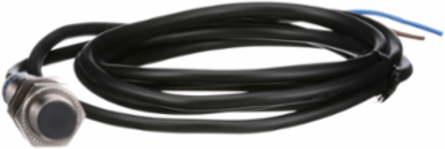

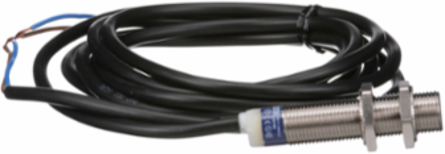

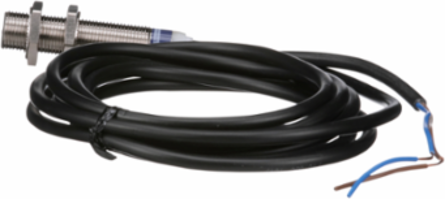

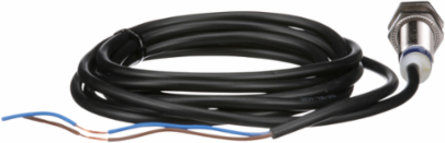

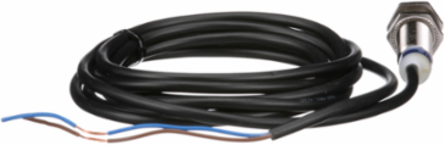

Telemecanique Sensors XS612B1MAL2 Inductive proximity sensors XS, inductive sensor XS6 M12, L54mm, brass, Sn4mm, 24...240VAC/DC, cable 2 m
- MPN: XS612B1MAL2
- PPN: TES-XS612B1MAL2
CAD
$188.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 24V to 240V AC/DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS6
- Size
- 54 mm
- Ip Degree Of Protection
- IP68 double insulation IEC 60529 || IP69K DIN 40050
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...200 mA AC/DC
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length2 m
Materialmetal
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance4 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M12
Complementary
- Maximum Delay Response
- 0.5 ms
- Operating Zone
- 0-3.2 mm
- Threaded Length
- 42 mm
- Length
- 54 mm
- Maximum Residual Current
- 0.8 mA open state
- Thread Type
- M12 x 1
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 20 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- nickel plated brass
- Front Material
- PPS
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<5.5 V closed)
MarkingCE
Net Weight0.075 kg
Switching Frequency<= 1000 Hz DC || <= 25 Hz AC
Sensing Range> 2.5...4 mm
Maximum Delay Recovery0.2 ms
Supply Voltage Limits20-264 V AC/DC
Detection Facefrontal
Cable Composition2 x 0.34 mm²
Environment
- Product Certifications
- UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
