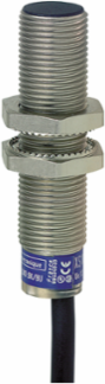

Telemecanique Sensors XS512B1DAL2 Inductive proximity sensors XS, inductive sensor XS5 M12, L53mm, brass, Sn2mm, 12...48 VDC, cable 2 m

MPN: XS512B1DAL2
PPN: TES-XS512B1DAL2
UNSPSC: 39122230

$143.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified.

Documentation & Downloads

Specifications

Key Specifications

Electrical Connection	cable
Discrete Output Function	1 NO
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Name	XS5
Size	54 mm
Ip Degree Of Protection	IP68 double insulation IEC 60529 \|\| IP69K DIN 40050
Body Type	fixed
Sensor Type	inductive proximity sensor
Switching Capacity In Ma	1.5...100 mA DC overload and short-circuit protection
Output Circuit Type	DC

[Us] Rated Supply Voltage	12...48 V DC
Type Of Output Signal	discrete
Cable Length	2 m
Material	metal
Wiring Technique	2-wire
Series Name	general purpose
[Sn] Nominal Sensing Distance	2 mm
Detector Flush Mounting Acceptance	flush mountable
Sensor Design	cylindrical M12

Complementary

Maximum Delay Response	0.2 ms
Operating Zone	0-1.6 mm
Threaded Length	42 mm
Length	53 mm
Maximum Residual Current	0.5 mA open state
Thread Type	M12 x 1
Maximum Delay Recovery	0.2 ms
Supply Voltage Limits	10-58 V DC
Detection Face	frontal
Cable Composition	2 x 0.34 mm²

Status Led	output state 1 LED yellow)
Maximum Voltage Drop	<4 V closed)
Marking	CE
Net Weight	0.075 kg
Switching Frequency	<= 4000 Hz
Differential Travel	1...15% of Sr
Maximum Delay First Up	10 ms
Wire Insulation Material	PVC
Enclosure Material	nickel plated brass
Front Material	PPS

Environment

Product Certifications	CSA \|\| UL \|\| CCC
Vibration Resistance	25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-85 °C

Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	50 gn 11 ms IEC 60068-2-27

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111006EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
