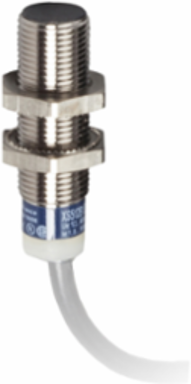

Telemecanique Sensors XS512B1PAL2 Inductive proximity sensors XS, inductive sensor XS5 M12, L35mm, brass, Sn2mm, 12...24 VDC, cable 2 m
- MPN: XS512B1PAL2
- PPN: TES-XS512B1PAL2
- UNSPSC: 39122230
CAD
$116.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Material
- metal
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 2 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M12
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS5
Size37 mm
Ip Degree Of ProtectionIP68 double insulation conforming to IEC 60529 || IP69K conforming to DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA DC overload and short-circuit protection
Output Circuit TypeDC
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.075 kg
- Thread Type
- M12 x 1
- Maximum Delay Recovery
- 0.1 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Cable Composition
- 3 x 0.34 mm²
Maximum Delay Response0.1 ms
Operating Zone0-1.6 mm
Threaded Length25 mm
Length35 mm
Switching Frequency<= 5000 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Wire Insulation MaterialPVC
Enclosure MaterialNickel Plated Brass
Front MaterialPPS
Environment
- Product Certifications
- UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
