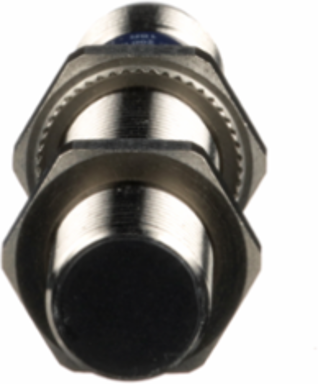

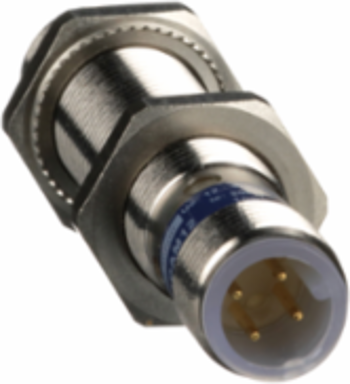

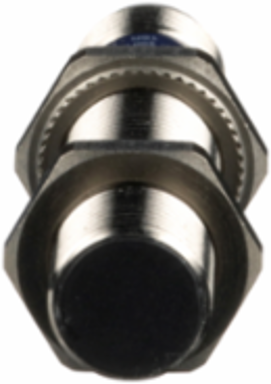

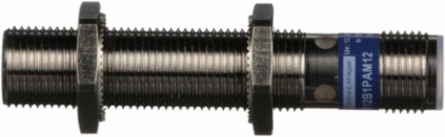

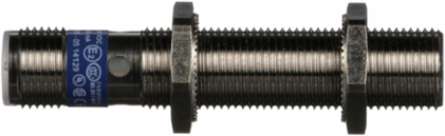

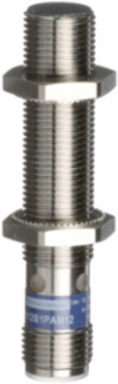

Telemecanique Sensors XS612B1PAM12 inductive sensor, XS6, M12, L62 mm, brass, Sensing 4 mm, 12 to 48 VDC
Telemecanique Sensors XS612B1PAM12 inductive sensor, XS6, M12, L62 mm, brass, Sensing 4 mm, 12 to 48 VDC
- MPN: XS612B1PAM12
- PPN: TES-XS612B1PAM12
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$87.53/ EA
Description
XS inductive proximity sensors are for noncontact sensing of metal objects up to 60 mm. These inductive proximity sensors are available in standard M8, M12, M18, M30 cylindrical housings with either short or long bodies. Standard cubic, rectangular and flat forms are also available. XS inductive proximity sensors are available in a wide variety of VAC and VDC power supply voltages. Proximity sensors can be used in the assembly machines, robotics, machine tools, machining, packaging, materials handling, conveying, and food and beverage industries. These proximity sensors comply with international standards including CE, UL, CSA, CCC, CTick, and TÛV. They also meet the top international quality IP69K requirements. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified.
Specifications
Environment
- Product Certifications
- E2 || CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.02 kg
- Thread Type
- M12 x 1
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Detection Face
- frontal
- Front Material
- PPS
Maximum Delay Response0.2 ms
Operating Zone0-3.2 mm
Threaded Length42 mm
Length62 mm
Switching Frequency<= 2500 Hz
Sensing Range> 2.5...4 mm
Maximum Delay Recovery0.2 ms
Supply Voltage Limits10-58 V DC
Enclosure Materialnickel plated brass
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS6
- Size
- 62 mm
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69K DIN 40050
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA DC overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...48 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialmetal
Wiring Technique3-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance4 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M12
Device Applicationmobile equipment
