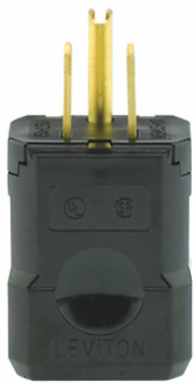

Leviton 5256-VB 15 Amp Straight Blade Plug, NEMA 5-15P, 125 Volt, Industrial Grade, Black
- MPN: 5256-VB
- UPC: 078477055175
- PPN: LEV-5256-VB
CAD
$16.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Python - Black
Features
- When it comes to the demanding nature of today’s commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python’s exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today’s faced-paced world where lost minutes on a job can translate into lost profits.
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | 057 |
| Warranty | 2-Year Limited |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| UL 498 | File E13399 |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Blades/Contacts | Solid Brass |
| Clamp Insert | Nylon |
| Cord-Clamp | Nylon |
| Wire Module | Nylon |
| Back Cover | Thermoplastic |
|---|---|
| Body Material | Super Tough Nylon |
| Color | Black |
| Terminal Screws | Brass |
Mechanical Specifications
| Cord Range | .245 - .700 |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Torque Range | 12-14 in-lbs |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Python |
|---|---|
| NEMA | 5-15P |
| Device Type | Straight Blade Plug |
|---|
Environmental Specifications
| Environment | Dry |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-2 per UL 94 |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
