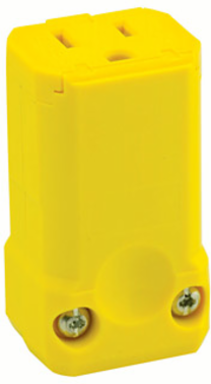

Leviton 5259-VY 15 Amp 125 Volt Straight Blade Connector NEMA 5-15R, Grounding, Yellow
- MPN: 5259-VY
- UPC: 078477055182
- PPN: LEV-5259-VY
CAD
$7.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding, Python - Yellow
Features
- When it comes to the demanding nature of today’s commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python’s exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today’s faced-paced world where lost minutes on a job can translate into lost profits.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Dielectric Voltage
- Withstands 2000V per UL498
- Poles
- 2
- Terminal Screws
- Brass
- Cord Range
- .245 - .700 in
- Grounding
- Grounding
- Material - Body
- Super Tough Nylon
- Back Cover Material
- Thermoplastic
- Cord Clamp Material
- Nylon
- Terminal Identification
- Brass-Hot, Green-Ground, Silver-Neutral
- Compliance
- ANSI C-73, CSA C22.2 No. 42, UL 498, NOM 057, NEMA WD-6
- UL Certification
- File E13399
- Color
- Yellow
- Brand
- Python
Voltage125 VAC
Operating Temperature-40°C to 60°C
Current InterruptingCertified for current interrupting at full rated current
Wires3
Terminal Accommodation18-10 AWG
NEMA ConfigurationWD-6
Material - Blades/ContactsSolid Brass
Assembly ScrewsSteel, Zinc Plated
Clamp Insert MaterialNylon
Wire Module MaterialNylon
Flammability RatingV-2 per UL 94
CSA CertificationFile LR-406
RoHS CompliantFalse
Country of OriginMexico
