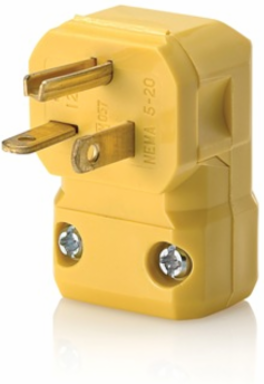

Leviton 5356-VA Industrial Grade 20 Amp 125 Volt Straight Blade Plug, NEMA 5-20P, Yellow
- MPN: 5356-VA
- UPC: 078477055090
- PPN: LEV-5356-VA
CAD
$27.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Python Angle - YELLOW
Features
- When it comes to the demanding nature of today’s commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python’s exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today’s faced-paced world where lost minutes on a job can translate into lost profits.
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL 498 | File E13399 |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| Warranty | 2-Year Limited |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Blades/Contacts | Solid Brass |
| Clamp Insert | Nylon |
| Cord-Clamp | Nylon |
| Wire Module | Nylon |
| Back Cover | Thermoplastic |
|---|---|
| Body Material | Super Tough Nylon |
| Color | Yellow |
| Terminal Screws | Brass |
Mechanical Specifications
| Cord Range | .245 - .700 |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
